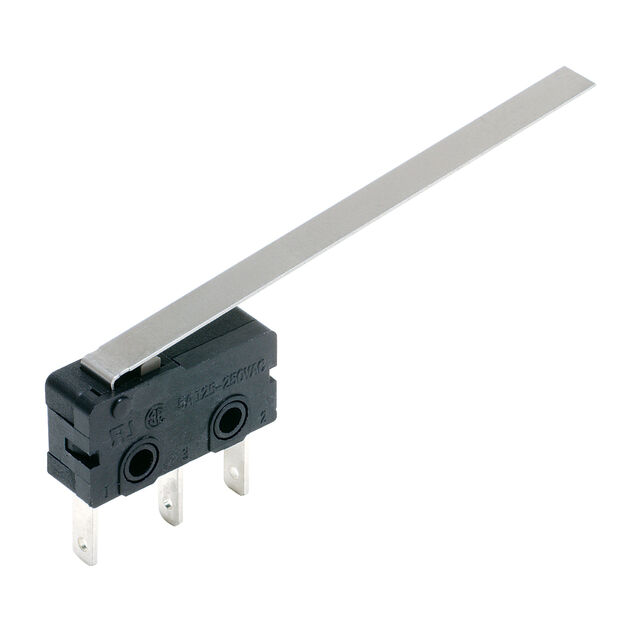

ZM50E70J01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZ Series Install Instr Datasheet

ZM50E70J01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsZ Series Install Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZM50E70J01

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.114 in
Differential Travel	2.9 mm
Electrical Life	6000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Position	11.8 mm
Operating Position	0.465 in
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.039 in
Overtravel	1 mm
Pretravel	13.3 mm
Pretravel	0.524 in
Release Force	2.5 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	125 V

ZM50E Series

Part	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Position	Operating Position	Overtravel	Overtravel	Pretravel	Pretravel	Current Rating (Amps)	Mounting Type	Circuit	Termination Style	Electrical Life	Actuator Type	Release Force	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Operating Force	Operating Position [x]	Operating Position [x]
Honeywell Sensing and Productivity Solutions ZM50E70A01	0.008 in	0.2 mm	125 V	0.449 in	11.4 mm	0.4 mm	0.015 "	0.043 "	1.1 mm	5 A	Chassis Mount	SPDT	Quick Connect - 0.110" (2.8mm)	6000 Cycles	Round (Pin Plunger)	35 gf	On-Mom	-40 °C	120 °C	10000000 Cycles	146 gf
Honeywell Sensing and Productivity Solutions ZM50E20A03	0.008 in	0.2 mm	125 V	0.449 in	11.4 mm	0.4 mm	0.015 "	0.043 "	1.1 mm	5 A	Through Hole	SPST-NO	PC Pin	6000 Cycles	Round (Pin Plunger)	35 gf	Off-Mom	-40 °C	120 °C	10000000 Cycles	146 gf
Honeywell Sensing and Productivity Solutions ZM50E70F01	0.03 in	0.76 mm	125 V	0.689 in	17.5 mm	0.76 mm	0.03 in	0.15 in	3.8 mm	5 A	Chassis Mount	SPDT	Quick Connect - 0.110" (2.8mm)	6000 Cycles	Lever Roller	8 gf	On-Mom	-40 °C	120 °C	10000000 Cycles	35 gf
Honeywell Sensing and Productivity Solutions ZM50E20E01			125 V	0.594 "	15.1 mm	0.6 mm	0.025 "	0.205 in	5.2 mm	5 A	Through Hole	SPDT	PC Pin	6000 Cycles	Lever Simulated Roller	8 gf	On-Mom	-40 °C	120 °C	10000000 Cycles	35 gf
Honeywell Sensing and Productivity Solutions ZM50E70J01	0.114 in	2.9 mm	125 V	0.465 in	11.8 mm	1 mm	0.039 in	0.524 in	13.3 mm	5 A	Chassis Mount	SPDT	Quick Connect - 0.110" (2.8mm)	6000 Cycles	Lever Straight	2.5 gf	On-Mom	-40 °C	120 °C	10000000 Cycles
Honeywell Sensing and Productivity Solutions ZM50E70D01			125 V			0.76 mm	0.03 in	0.24 in	6.1 mm	5 A	Chassis Mount	SPDT	Quick Connect - 0.110" (2.8mm)	6000 Cycles	Lever Straight	6 gf	On-Mom	-40 °C	120 °C	10000000 Cycles		0.35 in	8.9 mm
Honeywell Sensing and Productivity Solutions ZM50E20A01	0.008 in	0.2 mm	125 V	0.449 in	11.4 mm	0.4 mm	0.015 "	0.043 "	1.1 mm	5 A	Through Hole	SPDT	PC Pin	6000 Cycles	Round (Pin Plunger)	35 gf	On-Mom	-40 °C	120 °C	10000000 Cycles	146 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZM50E Series

Switch SPDT Chassis Mount
