021,BK

Active

Serpac

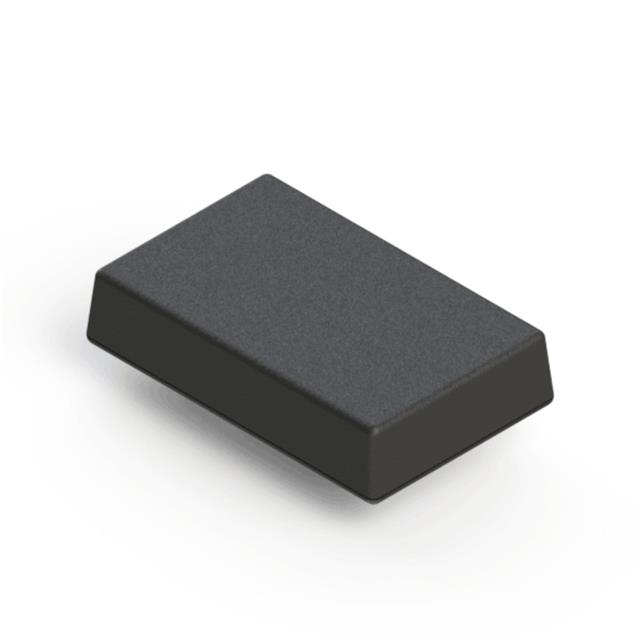

BOX ABS BLACK 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics for this part

Specification	021,BK

Area (L x W)	10.7 in²
Area (L x W)	69 cm²
Color	Black
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports
Height [z]	22.86 mm
Height [z]	0.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	104.14 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.121 lb
Weight	54.88 g

Part	Color	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Material	Ratings	Thickness	Thickness	Container Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Weight	Weight	Features	Material Flammability Rating	Design
Serpac 021,GY	Gray	10.7 in²	69 cm²	22.86 mm	0.9 in	Plastic ABS	IP40 NEMA 1	2.54 mm	0.1 in	Box	2.6 "	66.04 mm	104.14 mm	4.1 "	0.121 lb	54.88 g	PCB Supports	UL94 HB
Serpac 021,BK	Black	10.7 in²	69 cm²	22.86 mm	0.9 in	Plastic ABS	IP40 NEMA 1	2.54 mm	0.1 in	Box	2.6 "	66.04 mm	104.14 mm	4.1 "	0.121 lb	54.88 g	PCB Supports	UL94 HB	Cover Included Hand Held

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 0.900" (22.86mm)

Technical documentation and resources

No documents available
