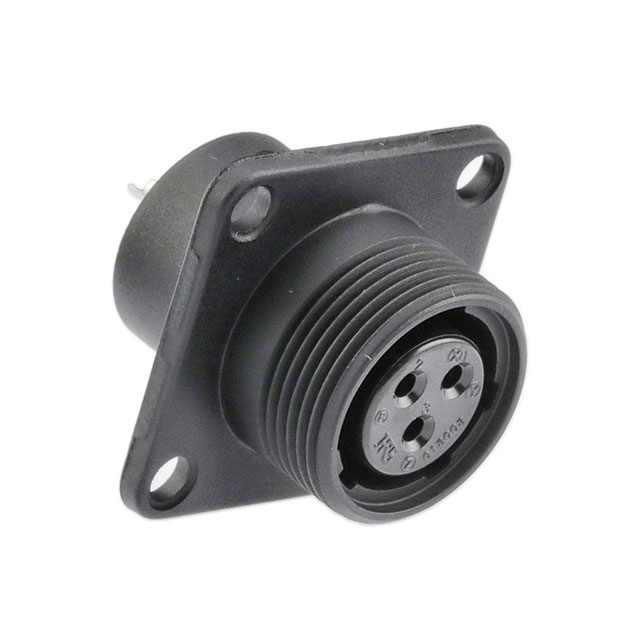

JR13WR-3S(31)

LTB

Hirose Electric USA, Inc.

CONN RCPT FMALE 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JR13WR-3S(31)

LTB

Hirose Electric USA, Inc.

CONN RCPT FMALE 3P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR13WR-3S(31)

Applications	Telecommunications, Industrial, Automotive
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Chromium
Shell Material	Aluminum Alloy
Shell Size - Insert	13
Shielding	Unshielded
Voltage Rating	100 VAC, 140 VDC

JR13WR Series

Part	Current Rating (Amps)	Shell Finish	Color	Applications	Voltage Rating	Contact Finish - Mating	Shell Size - Insert	Primary Material	Material Flammability Rating	Connector Type	Orientation	Shielding	Mounting Feature	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Insert Material	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. JR13WR-5P(31)	5 A	Black Chromium	Black	Automotive Industrial Telecommunications	100 VAC 140 VDC	Silver	13	Metal	UL94 V-0	Male Pins Receptacle	Keyed	Unshielded	Flange	Copper Alloy	118.1 µin	3 µm	IP67/IP68 - Dust Tight Waterproof	Phenol Formaldehyde (PF)	Aluminum Alloy	-25 °C	85 °C
Hirose Electric USA, Inc. JR13WR-3S(71)	10 A	Black Chromium	Black	Automotive Industrial Telecommunications	100 VAC 140 VDC	Silver	13	Metal	UL94 V-0	Receptacle Female Sockets	Keyed		Flange	Copper Alloy	2 µm		IP67/IP68 - Dust Tight Waterproof	Phenol Formaldehyde (PF)	Aluminum Alloy	-25 °C	85 °C	15.9 mm	0.626 in	78.7 µin
Hirose Electric USA, Inc. JR13WR-5S(71)	5 A	Black Chromium	Black	Automotive Industrial Telecommunications	100 VAC 140 VDC	Silver	13	Metal	UL94 V-0	Receptacle Female Sockets	Keyed		Flange	Copper Alloy	2 µm		IP67/IP68 - Dust Tight Waterproof	Phenol Formaldehyde (PF)	Aluminum Alloy	-25 °C	85 °C	15.9 mm	0.626 in	78.7 µin
Hirose Electric USA, Inc. JR13WR-5P(72)	5 A	Black Chromium	Black	Automotive Industrial Telecommunications	100 VAC 140 VDC	Silver	13	Metal	UL94 V-0	Male Pins Receptacle	Keyed		Flange	Copper Alloy	3 Ám		IP67/IP68 - Dust Tight Waterproof	Phenol Formaldehyde (PF)	Aluminum Alloy	-25 °C	85 °C	15.9 mm	0.626 in		118.1 Áin
Hirose Electric USA, Inc. JR13WR-5P(71)	5 A	Black Chromium	Black	Automotive Industrial Telecommunications	100 VAC 140 VDC	Silver	13	Metal	UL94 V-0	Male Pins Receptacle	Keyed		Flange	Copper Alloy	118.1 µin	3 µm	IP67/IP68 - Dust Tight Waterproof	Phenol Formaldehyde (PF)	Aluminum Alloy	-25 °C	85 °C	15.9 mm	0.626 in
Hirose Electric USA, Inc. JR13WR-3S(31)	10 A	Black Chromium	Black	Automotive Industrial Telecommunications	100 VAC 140 VDC	Silver	13	Metal	UL94 V-0	Receptacle Female Sockets	Keyed	Unshielded	Flange	Copper Alloy	2 µm		IP67/IP68 - Dust Tight Waterproof	Phenol Formaldehyde (PF)	Aluminum Alloy	-25 °C	85 °C			78.7 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.85
		10	$ 9.76
		30	$ 9.20
		50	$ 8.96

Description

General part information

JR13WR Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
