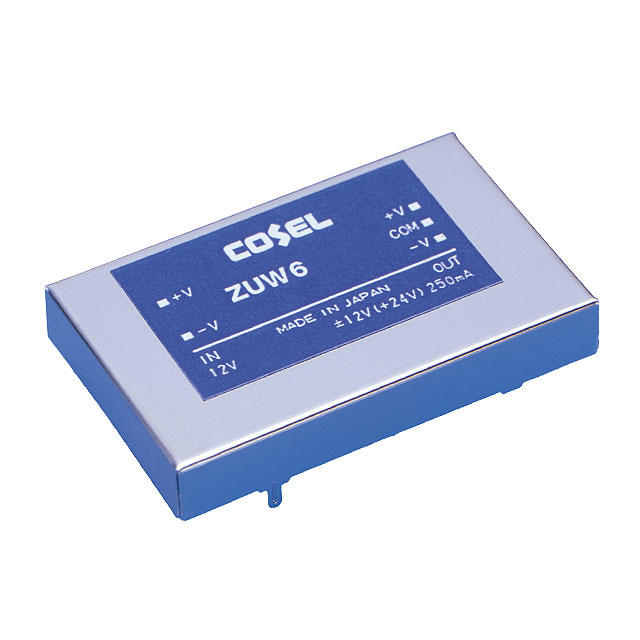

ZUW64812-A
ObsoleteCosel USA, Inc.
DC DC CONVERTER +/-12V 24V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZUW64812-A
ObsoleteCosel USA, Inc.
DC DC CONVERTER +/-12V 24V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZUW64812-A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 250 mA |
| Current - Output (Max) | 250 mA |
| Efficiency | 77 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 44.5 mm |
| Size / Dimension [x] | 1.75 " |
| Size / Dimension [y] | 1.1 in |
| Size / Dimension [y] | 28 mm |
| Size / Dimension [z] | 0.28 " |
| Size / Dimension [z] | 7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZUW64812 Series
Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 36V - 72V Input
