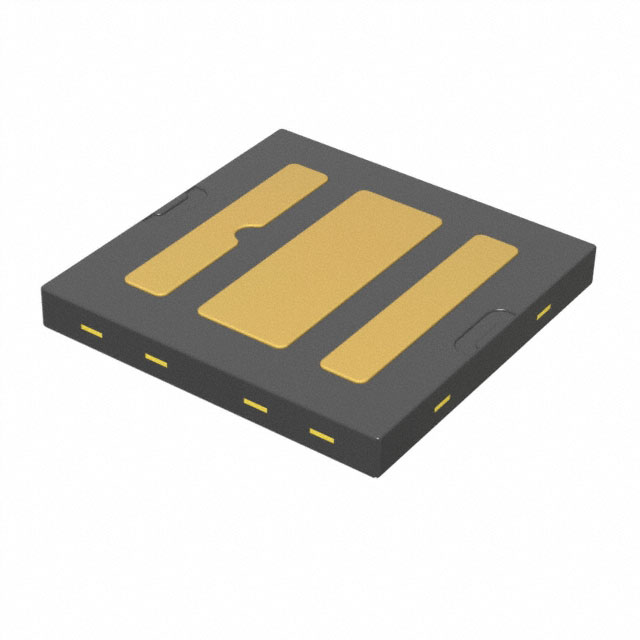

LR H9PP-HZJZ-1-1-350-R18-Z
Activeams-OSRAM USA INC.
LED OSLON BLK FLAT RED 626NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LR H9PP-HZJZ-1-1-350-R18-Z
Activeams-OSRAM USA INC.
LED OSLON BLK FLAT RED 626NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LR H9PP-HZJZ-1-1-350-R18-Z |
|---|---|
| Color | Red |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Lumens/Watt @ Current - Test | 73 lm/W |
| Luminous Flux @ Current/Temperature | 55 lm |
| Luminous Flux @ Current/Temperature [Max] | 71 lm |
| Luminous Flux @ Current/Temperature [Min] | 39 lm |
| Mounting Type | Surface Mount |
| Package / Case | 3838 Metric |
| Package / Case | 1515 |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 3.75 mm |
| Size / Dimension [y] | 0.148 in |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 6.5 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| 10 | $ 1.31 | |||
| 100 | $ 0.99 | |||
| 500 | $ 0.85 | |||
| 1000 | $ 0.81 | |||
| Digi-Reel® | 1 | $ 1.83 | ||
| 10 | $ 1.31 | |||
| 100 | $ 0.99 | |||
| 500 | $ 0.85 | |||
| 1000 | $ 0.81 | |||
| Tape & Reel (TR) | 2000 | $ 0.77 | ||
| 4000 | $ 0.74 | |||
| 6000 | $ 0.72 | |||
| 10000 | $ 0.70 | |||
| 14000 | $ 0.69 | |||
Description
General part information
LRH9PP Series
LED Lighting Color OSLON® Black Flat Red 626nm (620nm ~ 632nm) 1515 (3838 Metric)
