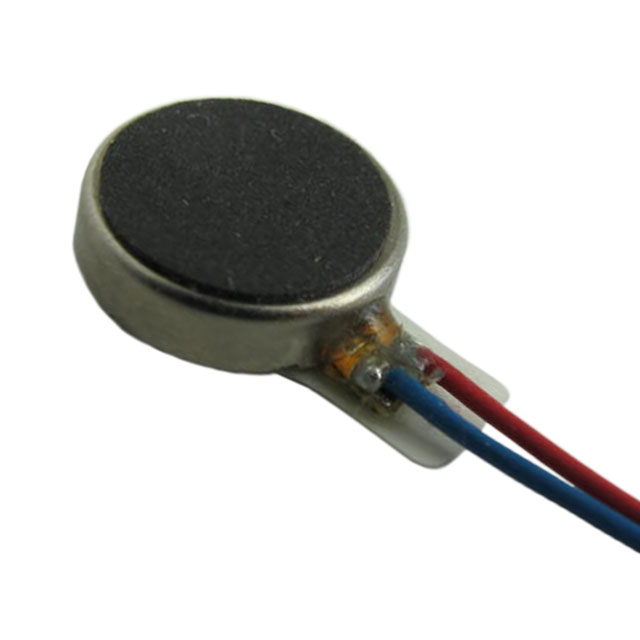

VC0820B006F
ActiveVybronics Inc
VIBRATION ERM MTR 10K RPM 0.3G
Deep-Dive with AI
Search across all available documentation for this part.
VC0820B006F
ActiveVybronics Inc
VIBRATION ERM MTR 10K RPM 0.3G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VC0820B006F |
|---|---|
| Function | ERM, Vibration |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 10000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 8 mm |
| Size / Dimension [diameter] | 0.315 " |
| Termination Style | Wire Leads |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.31 | |
| 5 | $ 3.13 | |||
| 10 | $ 3.04 | |||
| 25 | $ 2.96 | |||
| 50 | $ 2.70 | |||
| 100 | $ 2.44 | |||
| 250 | $ 2.35 | |||
| 500 | $ 2.31 | |||
| 1000 | $ 2.17 | |||
Description
General part information
C0820B006 Series
DC Motor Vibration, ERM 10000 RPM 3VDC
Documents
Technical documentation and resources
