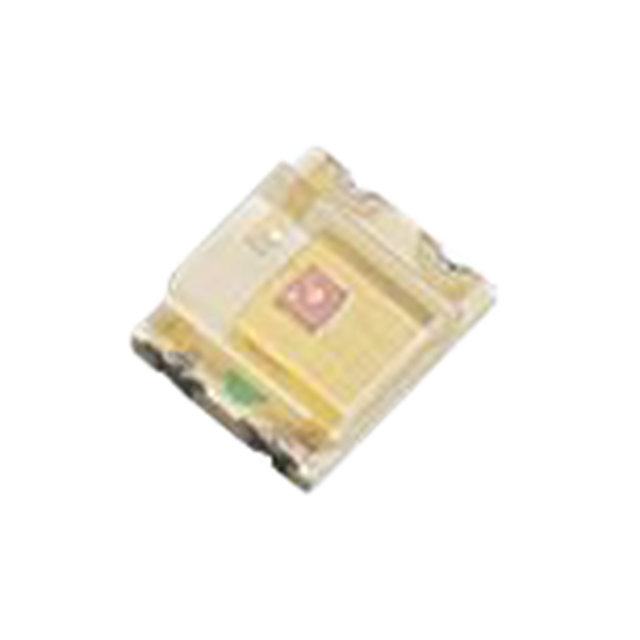

APS3227SP1C-P22
ActiveKingbright
SENSOR PHOTO 580NM TOP VIEW 1210
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APS3227SP1C-P22
ActiveKingbright
SENSOR PHOTO 580NM TOP VIEW 1210
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APS3227SP1C-P22 |
|---|---|
| Current - Dark (Id) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Viewing Angle | 120 ° |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Wavelength | 580 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.71 | |
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.71 | ||
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
| 6000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
APS3227 Series
Phototransistors 580nm Top View 1210 (3225 Metric)
