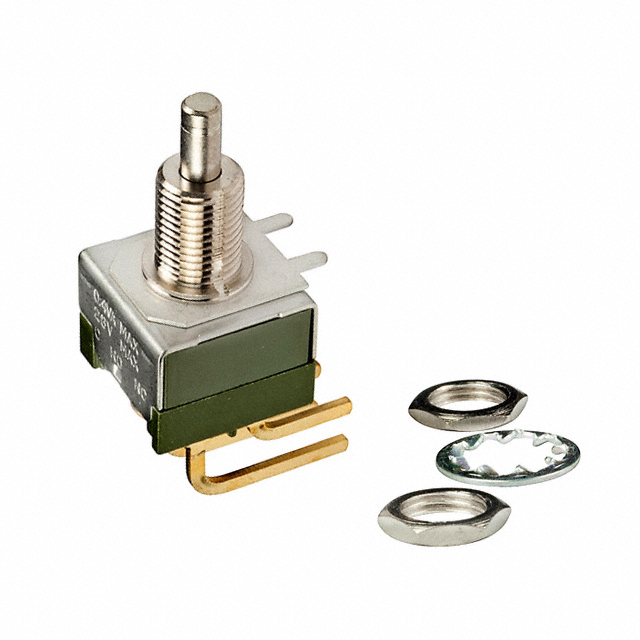

MB2461S1G30

Obsolete

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	MB2461S1G30

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Right Angle, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Features	Current Rating (Amps)	Electrical Life	Mounting Type	Mechanical Life	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Type	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Marking	Circuit	Termination Style	Color - Actuator/Cap
NKK Switches MB2461S1G03	Epoxy Sealed Terminals	0.4 VA	100000 Cycles	Panel Mount Rear	200000 Cycles	On-Mom	-30 ░C	85 °C	Standard	Plunger for Cap	28 V	6.5 mm	28 V	No Marking	DPDT	PC Pin
NKK Switches MB2461S1W01-FA	Epoxy Sealed Terminals	3 A	25000 Steps	Panel Mount Rear	200000 Cycles	On-Mom	-30 ░C	85 °C	Standard	Button Round	125 V	6.5 mm		No Marking	DPDT	Solder Lug	Black
NKK Switches MB2461S1G30-HA	Epoxy Sealed Terminals	0.4 VA	100000 Cycles	Panel Mount Rear Right Angle	200000 Cycles	On-Mom	-30 ░C	85 °C	Standard	Button Round	28 V	6.5 mm	28 V	No Marking	DPDT	PC Pin	Black
NKK Switches MB2461S1G30	Epoxy Sealed Terminals	0.4 VA	100000 Cycles	Panel Mount Rear Right Angle	200000 Cycles	On-Mom	-30 ░C	85 °C	Standard	Plunger for Cap	28 V	6.5 mm	28 V	No Marking	DPDT	PC Pin
NKK Switches MB2461S1G30-HC	Epoxy Sealed Terminals	0.4 VA	100000 Cycles	Panel Mount Rear Right Angle	200000 Cycles	On-Mom	-30 ░C	85 °C	Standard	Button Round	28 V	6.5 mm	28 V	No Marking	DPDT	PC Pin	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Right Angle, Rear
