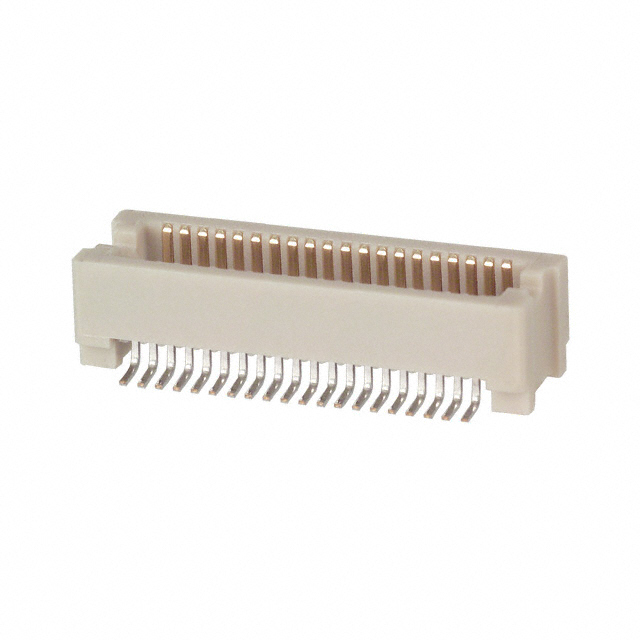

DF15C(4.2)-40DP-0.65V(56)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15C(4.2)-40DP-0.65V(56)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	0.165 "
Height Above Board	4.2 mm
Mated Stacking Heights	5 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Height Above Board	Height Above Board	Connector Type	Contact Finish	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Hirose Electric USA, Inc. DF15C(4.2)-20DP-0.65V(56)	0.165 "	4.2 mm	Header Outer Shroud Contacts	Gold	2	Surface Mount	0.026 in	0.65 mm	5 mm 6 mm	4 Áin	0.1 Ám	20
Hirose Electric USA, Inc. DF15C(4.2)-50DP-0.65V(56)	0.165 "	4.2 mm	Header Outer Shroud Contacts	Gold	2	Surface Mount	0.026 in	0.65 mm	5 mm 6 mm	4 Áin	0.1 Ám	50
Hirose Electric USA, Inc. DF15C(4.2)-40DP-0.65V(56)	0.165 "	4.2 mm	Header Outer Shroud Contacts	Gold	2	Surface Mount	0.026 in	0.65 mm	5 mm 6 mm	4 Áin	0.1 Ám	40
