TMC5160-BOB

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC5160

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMC5160-BOB

Contents	Board(s)
Primary Attributes	Motors (Stepper)
Secondary Attributes	SPI Interface(s)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	TMC5160

TMC5160 Series

Part	Technology	Output Configuration	Interface	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Motor Type - Stepper	Voltage - Load [Min]	Voltage - Load [Max]	Step Resolution [Max]	Step Resolution [Min]	Applications	Function	Current - Output	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - AC, DC	Primary Attributes	Type	Supplied Contents	Secondary Attributes	Contents	Utilized IC / Part
Analog Devices Inc./Maxim Integrated TMC5160A-TA-T	Power MOSFET	Half Bridge (4)	SPI Step/Direction	Surface Mount	50 VDC	10 VDC	Bipolar	10 V	55 V	1	0.00390625	Automation Control Industrial Medical	Driver - Fully Integrated Control and Power Stage	20 A	48-TQFP-EP (7x7)	48-TQFP Exposed Pad	-40 °C	125 ¯C	Universal
Analog Devices Inc./Maxim Integrated TMC5160SILENTSTEPSTICK																				Motors (Stepper)	Power Management	Board(s)	SPI Interface(s)	Board(s)	TMC5160
Analog Devices Inc./Maxim Integrated TMC5160-TA-T	BCD MOS External Power MOSFETs	Half Bridge (4)	SPI Step/Direction	Surface Mount	50 VDC	10 VDC	Bipolar	10 V	55 V	1	0.00390625	Industrial	Driver - Fully Integrated Control and Power Stage	20 A	48-TQFP-EP (7x7)	48-TQFP Exposed Pad	-40 °C	125 ¯C
Analog Devices Inc./Maxim Integrated TMC5160-TA	BCD MOS External Power MOSFETs	Half Bridge (4)	SPI Step/Direction	Surface Mount	50 VDC	10 VDC	Bipolar	10 V	55 V	1	0.00390625	Industrial	Driver - Fully Integrated Control and Power Stage	20 A	48-TQFP-EP (7x7)	48-TQFP Exposed Pad	-40 °C	125 ¯C
Analog Devices Inc./Maxim Integrated TMC5160A-TA	Power MOSFET	Half Bridge (4)	SPI Step/Direction	Surface Mount	50 VDC	10 VDC	Bipolar	10 V	55 V	1	0.00390625	Automation Control Industrial Medical	Driver - Fully Integrated Control and Power Stage	20 A	48-TQFP-EP (7x7)	48-TQFP Exposed Pad	-40 °C	125 ¯C	Universal
Analog Devices Inc./Maxim Integrated TMC5160-EVAL																				Motors (Stepper)	Power Management	Board(s)	SPI Interface(s)	Board(s)	TMC5160
Analog Devices Inc./Maxim Integrated TMC5160-EVAL-KIT																				Motors (Stepper)	Power Management	Board(s)	SPI Interface(s)	Board(s)	TMC5160
Analog Devices Inc./Maxim Integrated TMC5160-BOB																				Motors (Stepper)	Power Management	Board(s)	SPI Interface(s)	Board(s)	TMC5160

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.20

Description

General part information

TMC5160 Series

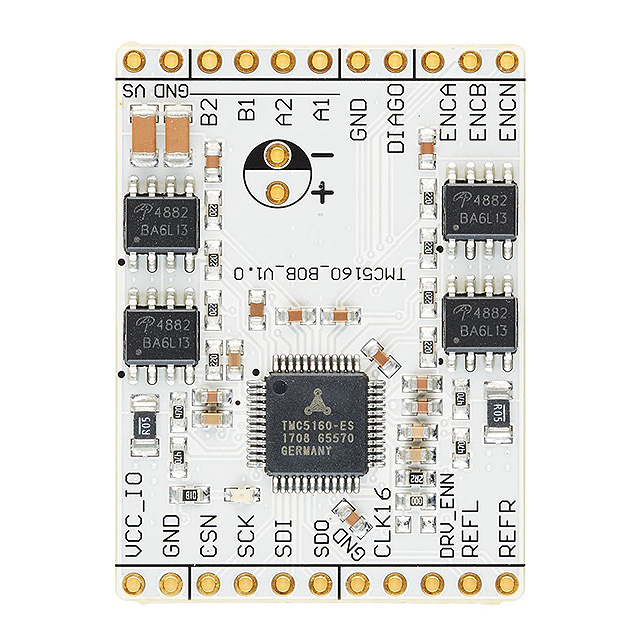

TMC5160 Motor Controller/Driver, Stepper Power Management Evaluation Board
