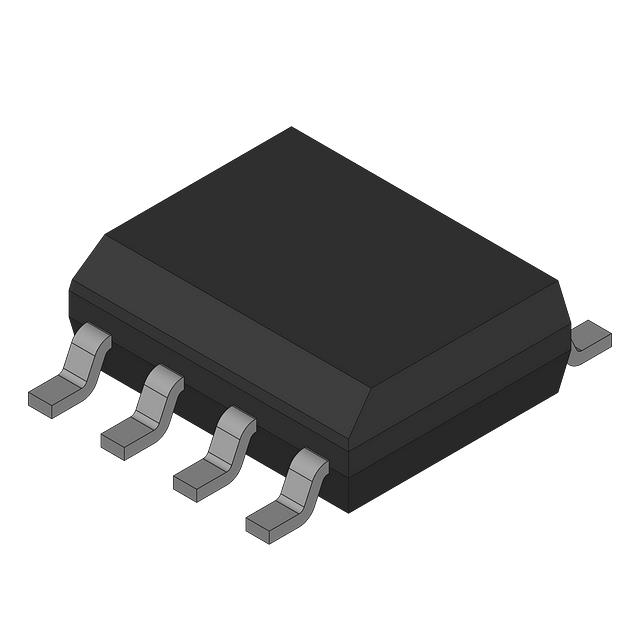

LP2996MRX-NS

Active

National Semiconductor

TERMINATOR SUPPORT CIRCUIT, PDSO

Search across all available documentation for this part.

Active

National Semiconductor

TERMINATOR SUPPORT CIRCUIT, PDSO

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Current - Supply	Applications	Package / Case [y]	Package / Case [x]	Package / Case	Mounting Type	Supplier Device Package
National Semiconductor LP2996MRX-NS	5.5 V	2.2 V	125 ¯C	320 µA	DDR Terminator	3.9 mm	0.154 in	8-PowerSOIC	Surface Mount	8-SO PowerPad
National Semiconductor LP2996LQ	5.5 V	2.2 V	125 °C	320 µA	DDR Terminator			16-WFQFN Exposed Pad	Surface Mount	16-WQFN (4x4)
National Semiconductor LP2996M	5.5 V	2.2 V	125 °C	320 µA	DDR Terminator	3.9 mm	0.154 in	8-SOIC	Surface Mount	8-SOIC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	249	$ 1.21

General part information

DDR Terminator PMIC 8-SO PowerPad

Technical documentation and resources

No documents available
