F6F0.50TB75

Active

Techflex

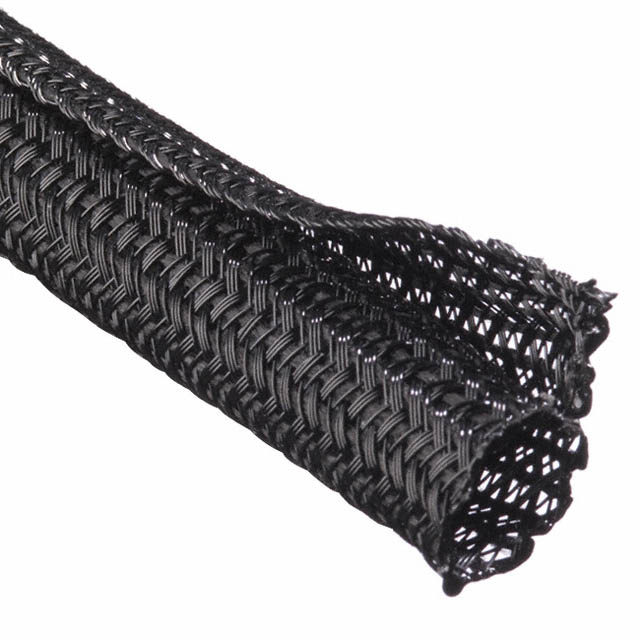

SELF WRAP 1/2" X 75' BLK/WHT

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 1/2" X 75' BLK/WHT

Technical Specifications

Parameters and characteristics for this part

Specification	F6F0.50TB75

Abrasion Protection	Abrasion and Cut Resistant
Color	White, Black
Diameter - Inside, Non-Expanded [diameter]	0.5 in
Diameter - Inside, Non-Expanded [diameter]	12.7 mm
Features	Solvent Resistant, Chemical Resistant, Self Extinguishing, Clean Cut
Heat Protection	Flame Retardant
Length [x]	22.86 m
Length [x]	75 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Heat Protection	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Wall Thickness [custom]	Wall Thickness [custom]	Material Flammability Rating	Length [x]	Length [x]	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Material	Wall Thickness	Wall Thickness
Techflex F6F0.38TB75	Flame Retardant	Chemical Resistant Clean Cut Self Extinguishing Solvent Resistant	Self Wrap	125 °C	-70 °C	Abrasion and Cut Resistant	0.025 in	0.64 mm	UL VW-1	22.86 m	75 ft	Split Flexible Tube	0.375 in	9.53 mm	Black White	Polyethylene Terephthalate (PET) Halogen Free
Techflex F6F0.50TB75	Flame Retardant	Chemical Resistant Clean Cut Self Extinguishing Solvent Resistant	Self Wrap	125 °C	-70 °C	Abrasion and Cut Resistant	0.025 in	0.64 mm	UL VW-1	22.86 m	75 ft	Split Flexible Tube	0.5 in	12.7 mm	Black White	Polyethylene Terephthalate (PET) Halogen Free
Techflex F6F0.13TB400	Flame Retardant	Chemical Resistant Clean Cut Self Extinguishing Solvent Resistant	Self Wrap	125 °C	-70 °C	Abrasion and Cut Resistant			UL VW-1	121.92 m	400 ft	Split Flexible Tube	0.125 in	3.18 mm	Black White	Polyethylene Terephthalate (PET) Halogen Free	0.024 in	0.61 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Self Wrap X 75.00' (22.86m) Black, White
