PL-2-5-1016-H
ActiveWakefield-Vette

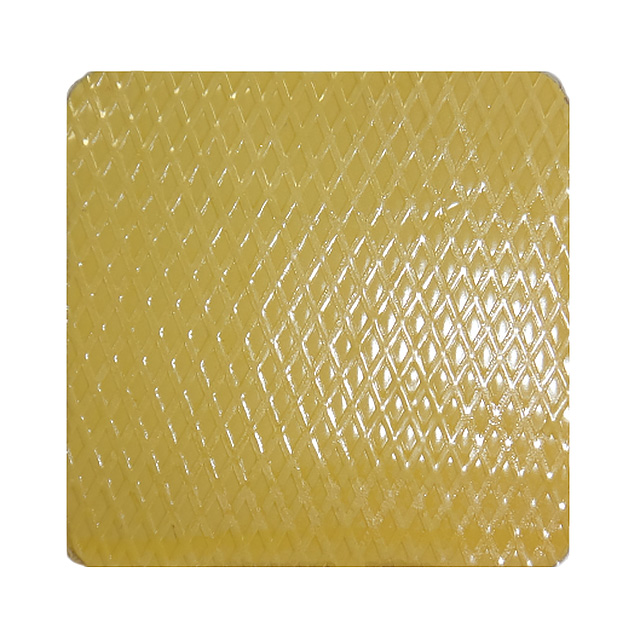

THERM PAD 101.6MMX101.6MM GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL-2-5-1016-H
ActiveWakefield-Vette
THERM PAD 101.6MMX101.6MM GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL-2-5-1016-H |
|---|---|
| Adhesive | Tacky - One Side |
| Color | Gold |
| Outline [x] | 101.6 mm |
| Outline [y] | 101.6 mm |
| Shape | Square |
| Shelf Life | 36 Months |
| Storage/Refrigeration Temperature [Max] | 95 °F |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Thermal Conductivity | 5 W/m-K |
| Thickness | 0.079 in |
| Thickness | 2 mm |
| Type | Gap Filler Pad, Sheet |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.62 | |
| 10 | $ 43.87 | |||
| 25 | $ 41.13 | |||
| 50 | $ 38.39 | |||
| 100 | $ 37.02 | |||
| 250 | $ 34.96 | |||
Description
General part information
PL-2-5-1016 Series
Thermal Pad Gold 101.60mm x 101.60mm Square Tacky - One Side
