106014-1
ActiveTE Connectivity Raychem Cable Protection

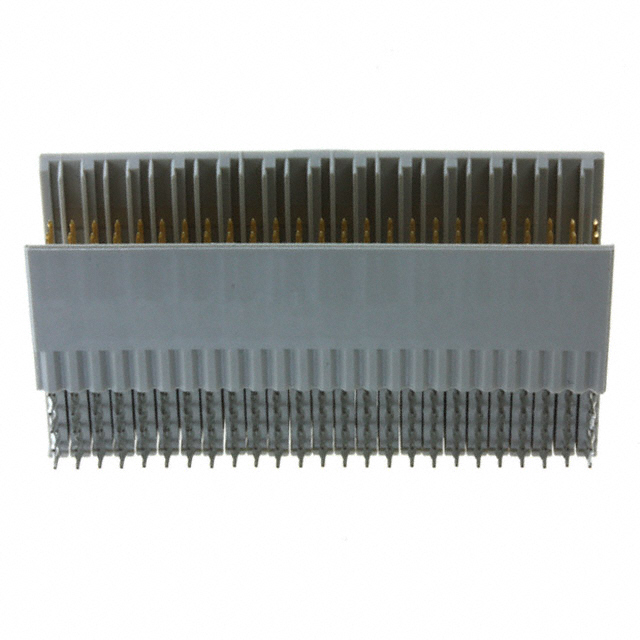

CONN HEADER 125POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
106014-1
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER 125POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 106014-1 |
|---|---|
| Connector Style | B 25 |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 125 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 500 VAC |
1060 Series
| Part | Connector Type | Body Finish | Frequency - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Insertion Loss | Cable Group | Center Contact Material | Voltage Rating | Includes | Number of Ports | Impedance | Connector Style | Mounting Feature | Housing Color | Contact Termination | Center Contact Plating | Dielectric Material | Body Material | Shield Termination | Fastening Type | Mounting Type | Adapter Series | Style | Adapter Type | Center Gender | Conversion Type | Convert To (Adapter End) | Convert From (Adapter End) | Number of Positions Loaded | Connector Usage | Features | Number of Positions | Number of Rows | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch [x] | Pitch [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Jack Male Pin | Gold | 4 GHz | -65 ░C | 165 °C | 500 | 0.3 dB | 188 316 RG-174 | Beryllium Copper | 335 V | 1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut 1 Ring 1 Washer 2 Insulators | 1 | 50 Ohms | SMB | Bulkhead - Front Side Nut | Gold | Solder | Gold | Polytetrafluoroethylene (PTFE) | Brass | Clamp | Snap-On | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Male Pin Plug | Gold | 6000 MHz | -65 ░C | 165 °C | 500 | 0.1 dB | RG-405 (.085" Semi Rigid) | Brass | 335 V | 1 Connector 1 End Cap | 1 | 50 Ohms | MCX | Gold | Solder | Gold | Polytetrafluoroethylene (PTFE) | Brass | Solder | Snap-On | Free Hanging (In-Line) Right Angle | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 4 GHz | -65 ░C | 125 °C | 0.03 dB | Brass | 50 Ohms | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Snap-On Threaded | Free Hanging (In-Line) | SMA to SMB | Straight | Plug to Jack | Male to Male | Between Series | Male Pin SMB Jack | SMA Plug Male Pin | ||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Male Pin Plug | Nickel | 6000 MHz | -65 ░C | 165 °C | 500 | 0.1 dB | 179 187 188 316 RG-174 | Brass | 335 V | 1 Connector 1 End Cap | 1 | 50 Ohms | MCX | Silver | Solder | Gold | Polytetrafluoroethylene (PTFE) | Brass | Crimp | Snap-On | Free Hanging (In-Line) Right Angle | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Male Pin Plug | Gold | 4 GHz | -65 ░C | 165 °C | 500 | 0.1 dB | 188 316 RG-174 | Brass | 335 V | 1 Connector 1 End Cap | 1 | 50 Ohms | MCX | Gold | Solder | Gold | Polytetrafluoroethylene (PTFE) | Brass | Solder | Snap-On | Free Hanging (In-Line) Right Angle | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Male Pin Receptacle | Gold | 4 GHz | -65 ░C | 165 °C | 500 | 0.3 dB | Iron Nickel Alloy | 335 V | 1 | 50 Ohms | SMB | Gold | Solder | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Solder | Snap-On | |||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 4 GHz | -65 ░C | 125 °C | Beryllium Copper | 50 Ohms | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Free Hanging (In-Line) | OSM to SMC | Straight | Plug to Jack | Female to Female | Between Series | Female Socket SMA Jack | Female Socket SMC Plug | ||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Header Male Pins | -55 °C | 125 °C | 500 VAC | C 11 | Through Hole | All | Backplane | Board Guide | 22 positions 55 positions | 2 5 | Press-Fit | 0.76 Ám | 30 Áin | Gold | 0.079 in | 2 mm | 1.5 A | ||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Header Male Pins | -55 °C | 125 °C | 500 VAC | B 25 | Board Edge Right Angle Through Hole | All | Backplane | 125 | 5 | Press-Fit | 0.76 Ám | 30 Áin | Gold | 0.079 in | 2 mm | 1.5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 37.89 | |
| 11 | $ 31.27 | |||
| 33 | $ 29.07 | |||
| 88 | $ 27.46 | |||
| 231 | $ 26.86 | |||
Description
General part information
1060 Series
125 Position Header, Male Pins Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
Documents
Technical documentation and resources
