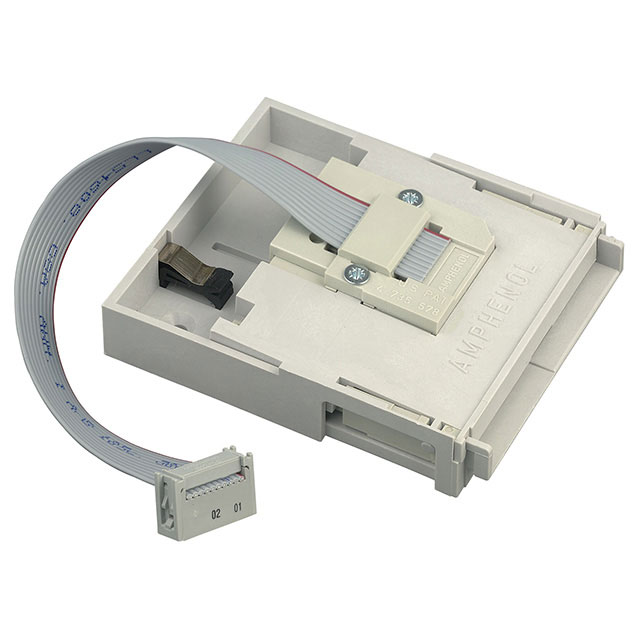

C70210M0080182
ActiveAmphenol Tuchel Industrial
CONN SMART CARD PUSH PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C70210M0080182
ActiveAmphenol Tuchel Industrial
CONN SMART CARD PUSH PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C70210M0080182 |
|---|---|
| Card Type | Smart Card |
| Features | Assembly with Cable, Switch |
| Height Above Board | 0.665 in |
| Height Above Board | 16.9 mm |
| Insertion, Removal Method | Push Only |
| Mounting Feature | Normal, Standard - Top |
| Number of Positions | 10 |
C70210M008 Series
| Part | Height Above Board [z] | Height Above Board [z] | Number of Positions | Features | Insertion, Removal Method | Mounting Feature | Card Type | Mounting Type | Height Above Board | Height Above Board | Connector Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | 0.283 in | 7.2 mm | 10 | Board Lock Switch | Pull Out Push In | Normal Standard - Top | Smart Card | Through Hole Right Angle | ||||
Amphenol Tuchel Industrial | 10 | Assembly with Cable Switch | Auto Eject Out Push In | Normal Standard - Top | Smart Card | 0.665 in | 16.9 mm | Connector and Ejector | ||||
Amphenol Tuchel Industrial | 10 | Assembly with Cable Switch | Pull Out Push In | Normal Standard - Top | Smart Card | 0.665 in | 16.9 mm | |||||
Amphenol Tuchel Industrial | 10 | Assembly with Cable Switch | Pull Out Push In | 0.236 in | 6 mm | |||||||
Amphenol Tuchel Industrial | 10 | Assembly with Cable Switch | Auto Eject Out Push In | Normal Standard - Top | Smart Card | Connector and Ejector | ||||||
Amphenol Tuchel Industrial | 11 | Board Guide Switch | Pull Out Push In | Normal Standard - Top | Surface Mount Right Angle | 0.142 in | 3.6 mm | Gold | ||||
Amphenol Tuchel Industrial | 10 | Assembly with Cable Switch | Push Only | Normal Standard - Top | Smart Card | 0.665 in | 16.9 mm | |||||
Amphenol Tuchel Industrial | 10 | Assembly with Cable Board Lock Switch | Pull Out Push In | Normal Standard - Top | Smart Card | 0.307 in | 7.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 147 | $ 35.79 | |
Description
General part information
C70210M008 Series
10 (8 + 2) Position Card Connector Smart Card Panel Mount
