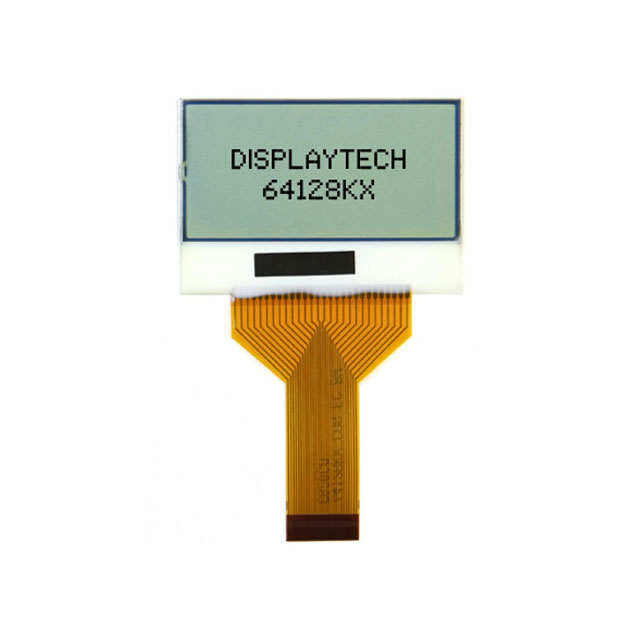

64128KX FC BW-3

Active

Displaytech

DISPLAY LCD 128X64 TRANSFL

Search across all available documentation for this part.

Active

Displaytech

DISPLAY LCD 128X64 TRANSFL

Technical Specifications

Parameters and characteristics for this part

Specification	64128KX FC BW-3

Backlight	LED - White
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pixels [x]	128
Dot Pixels [y]	64
Dot Size [x]	0.33 mm
Dot Size [y]	0.33 mm
Viewing Area [y]	50 mm
Viewing Area [z]	25 mm

Part	Viewing Area [y]	Viewing Area [z]	Display Type	Backlight	Dot Pixels [y]	Dot Pixels [x]	Display Mode	Dot Size [y]	Dot Size [x]	Dot Size [custom]	Dot Size [custom]	Viewing Area [x]
Displaytech 64128N FCBW-3LP	50 mm	25 mm	FSTN - Film Super-Twisted Nematic	LED - White	64	128	Transflective	0.33 mm	0.33 mm
Displaytech 64128K FC BW-3	50 mm	25 mm	FSTN - Film Super-Twisted Nematic	LED - White	64	128	Transflective	0.33 mm	0.33 mm
Displaytech 64128M FC BW-RGB	40 mm		FSTN - Film Super-Twisted Nematic	Blue Green LED Red	64	128	Transflective			0.48 mm	0.48 mm	70 mm
Displaytech 64128K FC BW-RGB	50 mm	25 mm	FSTN - Film Super-Twisted Nematic	Blue Green LED Red	64	128	Transflective	0.33 mm	0.33 mm
Displaytech 64128MX FC BW-3	40 mm		FSTN - Film Super-Twisted Nematic	LED - White	64	128	Transflective			0.48 mm	0.48 mm	70 mm
Displaytech 64128KX FC BW-3	50 mm	25 mm	FSTN - Film Super-Twisted Nematic	LED - White	64	128	Transflective	0.33 mm	0.33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transflective FSTN - Film Super-Twisted Nematic 128 x 64
