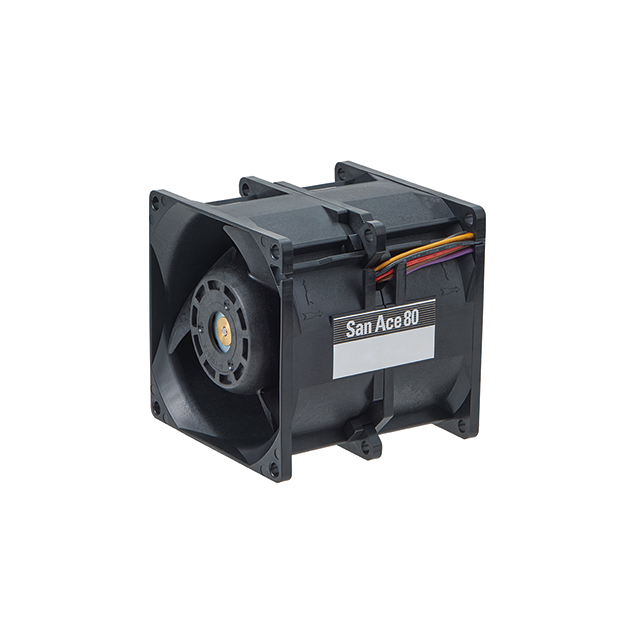

9CRB0812P8G001
ActiveSanyo Denki America Inc.
FAN AXIAL DUAL 80X80MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
9CRB0812P8G001
ActiveSanyo Denki America Inc.
FAN AXIAL DUAL 80X80MM 12VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9CRB0812P8G001 |
|---|---|
| Air Flow | 194 CFM |
| Air Flow | 5.43 m³/min |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 9.2 A |
| Fan Type | Tubeaxial (Dual) |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 80 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 110.4 W |
| RPM [custom] | 14600 |
| RPM [custom] | 12200 |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 4.6 in H2O |
| Static Pressure | 1145.8 Pa |
| Termination | 4 Wire Leads per Fan |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Weight | 430.01 g |
| Weight | 0.948 lb |
| Width | 60 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 74.95 | |
| 10 | $ 67.61 | |||
Description
General part information
9CRB0812 Series
Fan Tubeaxial (Dual) 12VDC Square - 80mm L x 80mm H Ball 194.0 CFM (5.43mł/min) 4 Wire Leads per Fan
