0191470103

Obsolete

Molex

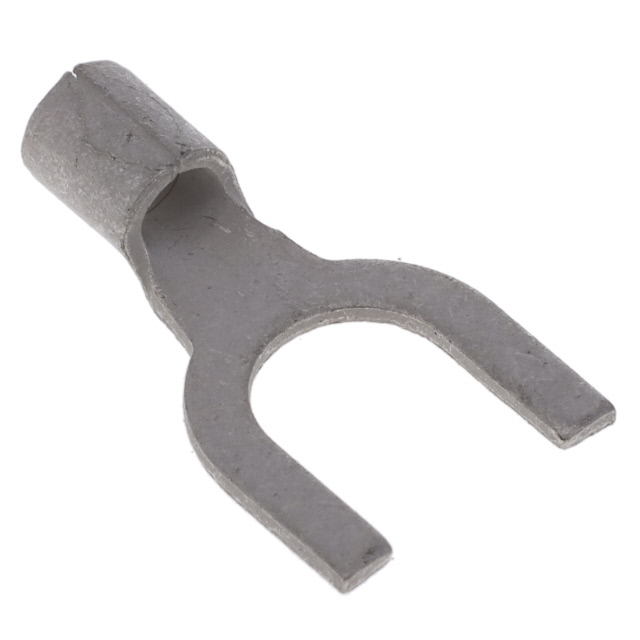

CONN SPADE TERM 10-12AWG #5/16

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0191470103

Obsolete

Molex

CONN SPADE TERM 10-12AWG #5/16

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191470103

Contact Finish	Electro-Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall [x]	24.51 mm
Length - Overall [x]	0.965 in
Length - Ring Center to Termination [x]	7.65 mm
Length - Ring Center to Termination [x]	0.301 in
Length - Termination [custom]	0.245 in
Length - Termination [custom]	6.22 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.3125 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.328 in
Tongue Inside Opening [x]	8.33 mm
Width - Outer Edges [y]	13.54 mm
Width - Outer Edges [y]	0.533 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

019147 Series

Part	Length - Overall	Length - Overall	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Contact Material	Insulation	Features	Contact Finish	Terminal Type	Length - Termination [custom]	Length - Termination [custom]	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Termination	Length - Termination	Length - Ring Center to Termination	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Ring Center to Termination
Molex 0191470088	19.91 mm	0.784 in	0.305 "	7.75 mm	8 Stud	12 AWG	10 AWG	Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard	0.245 in	6.22 mm	Free Hanging (In-Line)	8.13 mm	0.32 in
Molex 0191470087	19.91 mm	0.784 in	0.305 "	7.75 mm		12 AWG	10 AWG	Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard	0.245 in	6.22 mm	Free Hanging (In-Line)	8.13 mm	0.32 in	3.71 mm	0.146 in	6 Stud
Molex 0191470135			0.301 in	7.65 mm		12 AWG	10 AWG	Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard	0.245 in	6.22 mm	Free Hanging (In-Line)	13.54 mm	0.533 in	8.33 mm	0.328 in	0.3125 Stud	24.51 mm	0.965 in
Molex 0191470019			0.207 in			22 AWG	17.5 AWG	Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard			Free Hanging (In-Line)			3.71 mm	0.146 in	6 Stud	14.22 mm	0.56 in	0.245 in	6.22 mm	4.19 mm	0.165 in	5.26 mm
Molex 0191470062			0.211 in	5.36 mm				Crimp	Copper	Non-Insulated		Tin	Standard			Free Hanging (In-Line)			5.03 mm	0.198 in	10 Stud	14.12 mm	0.556 in	0.295 in	7.49 mm	4.32 mm	0.17 in		2.06 mm	0.081 in
Molex 0191470057								Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard			Free Hanging (In-Line)			3.71 mm	0.146 in	6 Stud	14 mm	0.551 "	0.245 in	6.22 mm	4.19 mm	0.165 in	5.69 mm			0.224 in
Molex 0191470007			0.207 in			22 AWG	17.5 AWG	Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard			Free Hanging (In-Line)			3.71 mm	0.146 in	6 Stud	14.22 mm	0.56 in	0.291 in	7.39 mm	4.19 mm	0.165 in	5.26 mm
Molex 0191470096			0.301 in	7.65 mm		12 AWG	10 AWG	Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard	0.245 in	6.22 mm	Free Hanging (In-Line)			5.03 mm	0.198 in	10 Stud	20.62 mm	0.812 "	0.375 in	9.53 mm
Molex 0191470103			0.301 in	7.65 mm		12 AWG	10 AWG	Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard	0.245 in	6.22 mm	Free Hanging (In-Line)	13.54 mm	0.533 in	8.33 mm	0.328 in	0.3125 Stud	24.51 mm	0.965 in
Molex 0191470050	17.45 mm	0.687 in	0.269 in	6.83 mm				Crimp	Copper	Non-Insulated	Brazed Seam	Electro-Tin	Standard			Free Hanging (In-Line)	9.19 mm	0.362 "	3.71 mm	0.146 in	6 Stud					4.19 mm	0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.55
		10	$ 0.41
		25	$ 0.37
		50	$ 0.34
		100	$ 0.31
		250	$ 0.28
		500	$ 0.27
		1000	$ 0.25

Description

General part information

019147 Series

5/16 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
