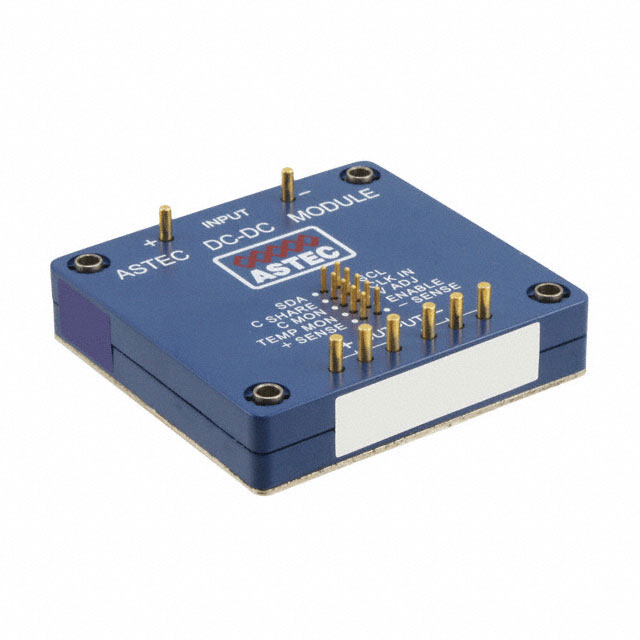

AIH16C300N-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 15V 250W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AIH16C300N-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 15V 250W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AIH16C300N-L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 16.6 A |
| Efficiency | 90 % |
| Features | OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Power (Watts) | 250 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 58.4 mm |
| Size / Dimension [y] | 2.3 " |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Min) [Min] | 250 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 231.78 | |
| 5 | $ 223.13 | |||
| 10 | $ 219.50 | |||
| 25 | $ 214.78 | |||
| 64 | $ 196.03 | |||
Description
General part information
AIH16C300 Series
Isolated Module DC DC Converter 1 Output 15V 16.6A 250V - 420V Input
