A20-432-663-310

Active

EDAC Inc.

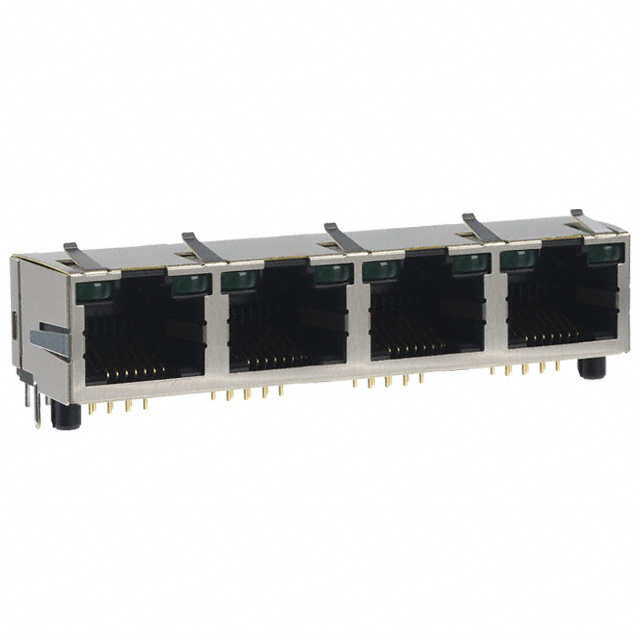

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	A20-432-663-310

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	4
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Ratings	Cat5
Shielding	Shielded
Tab Direction	Up
Termination	Solder

Part	Number of Ports	LED Color	Tab Direction	Number of Rows	Contact Material	Contact Finish	Number of Positions/Contacts	Shielding	Housing Material	Termination	Mounting Type	Ratings	Orientation	Connector Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. A20-432-663-310	4	Green - Green	Up	1	Phosphor Bronze	Gold	8p8c (RJ45 Ethernet)	Shielded	Polybutylene Terephthalate (PBT)	Solder	Through Hole	Cat5	90 °	Jack	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 7.01

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
