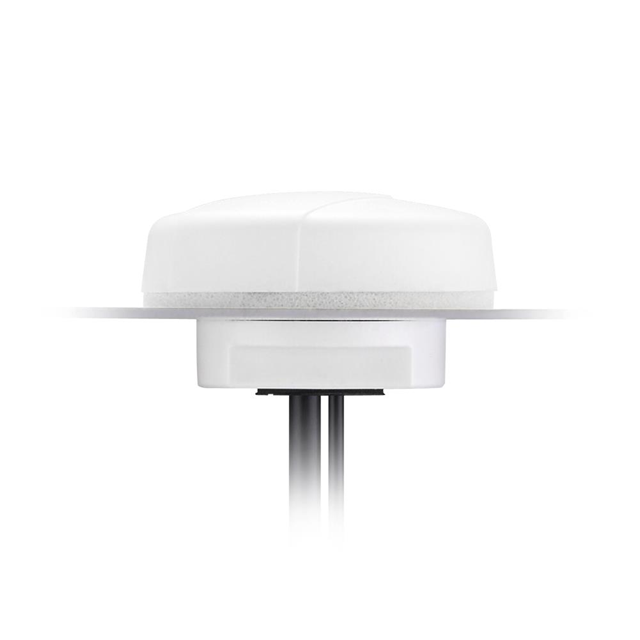

MA111.W.C.LB.001
ActiveTAOGLAS
RF ANT 850MHZ/900MHZ DOME PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
MA111.W.C.LB.001
ActiveTAOGLAS
RF ANT 850MHZ/900MHZ DOME PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MA111.W.C.LB.001 |
|---|---|
| Antenna Type | Dome |
| Applications | GPS, GLONASS, GSM, CDMA, UMTS |
| Features | LNA, Filter, Cable - 3m |
| Frequency (Center/Band) | 1.8 GHz, 1.9 GHz, 900 MHz, 2.1 GHz, 850 MHz, 1.575 GHz, 1.602 GHz |
| Frequency Range [Max] | 1.606 GHz, 2.17 GHz, 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 1.574 GHz, 824 MHz |
| Gain | 2.5 dBi, -1.4 dBi, 4 dBi, 2 dBic, 3 dBi, 1.5 dBic, -1.3 dBi |
| Height (Max) | 19.6 mm |
| Height (Max) [Max] [z] | 0.772 in |
| Ingress Protection | IP67, IP69K |
| Number of Bands | 7 |
| RF Family/Standard | Cellular, Navigation |
| Termination | SMA Male (2) |
| VSWR | 2.5, 3, 3.5, 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 69.76 | |
Description
General part information
MA111 Series
RF ANTENNA CDMA, GLONASS, GPS, GSM, UMTS Dome SMA Male (2) Panel Mount
Documents
Technical documentation and resources
No documents available
