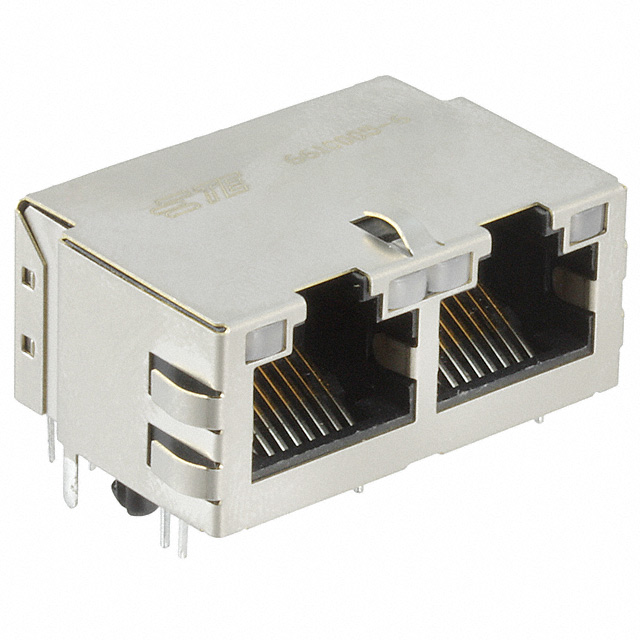

6610005-6

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	6610005-6

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Lock, Decoupling Capacitance
Height Above Board [z]	13.97 mm
Height Above Board [z]	0.55 "
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	12
Number of Ports	2
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	LED Color	Number of Ports	Tab Direction	Number of Rows	Mounting Type	Housing Material	Number of Cores per Jack	Orientation	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Features	Termination	Shield Material	Contact Finish	Contact Material	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Shielding
TRP Connector B.V. 6610005-6	Green Yellow	2	Up	1	Through Hole	Polyester Polyethylene Terephthalate (PET)	12	90 °	RJ45	70 °C	0 °C	10/100/1000 Base-T AutoMDIX	Board Lock Decoupling Capacitance	Solder	Brass	Gold	Phosphor Bronze	13.97 mm	0.55 "	50 µin	1.27 µm	Shielded EMI Finger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
