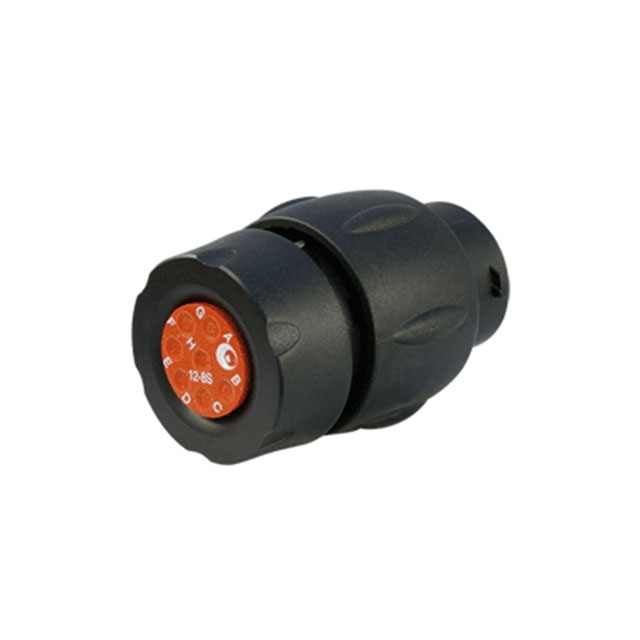

UTS1GN128P

Unknown

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTS1GN128P

Unknown

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 8POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS1GN128P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	12-8
Shielding	Unshielded
Type	For Male Pins

UTS1G Series

Part	Note	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Type	Connector Type	Housing Color	Mounting Type	Fastening Type	Features	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Contact Shape	Orientation	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Size	Shielding	Shell Size - Insert	Number of Positions
Souriau-Sunbank by Eaton UTS1GJC147P	Contacts Not Included	14	7	For Male Pins	Receptacle Housing	Black	Free Hanging (In-Line)	Bayonet Lock	Backshell	UL94 V-0	1	6	Circular	N	IP68 IP69K	-40 °C	105 ░C	Crimp	16	Unshielded
Souriau-Sunbank by Eaton UTS1GN147P	Contacts Not Included	14	7	For Male Pins	Receptacle Housing	Black	Free Hanging (In-Line)	Bayonet Lock		UL94 V-0	1	6	Circular	N	IP68 IP69K	-40 °C	105 ░C	Crimp	16	Unshielded
Souriau-Sunbank by Eaton UTS1GJC104P	Contacts Not Included			For Male Pins	Receptacle Housing	Black	Free Hanging (In-Line)	Bayonet Lock	Backshell	UL94 V-0			Circular	N	IP68 IP69K	-40 °C	105 ░C	Crimp	16	Unshielded	10-4	4
Souriau-Sunbank by Eaton UTS1GJC1412P	Contacts Not Included			For Male Pins	Receptacle Housing	Black	Free Hanging (In-Line)	Bayonet Lock	Backshell	UL94 V-0			Circular	N	IP68 IP69K	-40 °C	105 ░C	Crimp	16	Unshielded	14-12	12
Souriau-Sunbank by Eaton UTS1GN1412P	Contacts Not Included			For Male Pins	Receptacle Housing	Black	Free Hanging (In-Line)	Bayonet Lock		UL94 V-0			Circular	N	IP68 IP69K	-40 °C	105 ░C	Crimp	16	Unshielded	14-12	12
Souriau-Sunbank by Eaton UTS1GJC128P	Contacts Not Included			For Male Pins	Receptacle Housing	Black	Free Hanging (In-Line)	Bayonet Lock	Backshell	UL94 V-0			Circular	N	IP68 IP69K	-40 °C	105 ░C	Crimp	16	Unshielded	12-8	8
Souriau-Sunbank by Eaton UTS1GN128P	Contacts Not Included			For Male Pins	Receptacle Housing	Black	Free Hanging (In-Line)	Bayonet Lock		UL94 V-0			Circular	N	IP68 IP69K	-40 °C	105 ░C	Crimp	16	Unshielded	12-8	8
Souriau-Sunbank by Eaton UTS1GN104P	Contacts Not Included			For Male Pins	Receptacle Housing	Black	Free Hanging (In-Line)	Bayonet Lock		UL94 V-0			Circular	N	IP68 IP69K	-40 °C	105 ░C	Crimp	16	Unshielded	10-4	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UTS1G Series

8 Position Circular Connector Receptacle Housing Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
