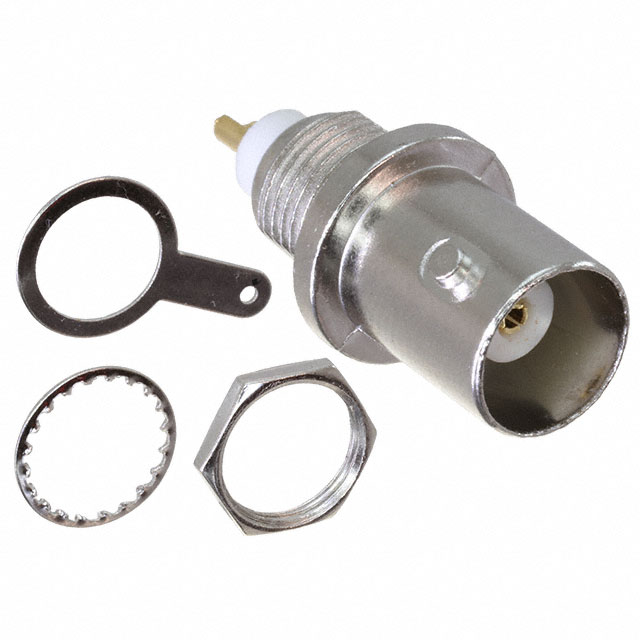

RF1-106-D-00-50-HDW
ActiveAdam Tech
BNC STRAIGHT BULKHEAD SKT 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
RF1-106-D-00-50-HDW
ActiveAdam Tech
BNC STRAIGHT BULKHEAD SKT 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF1-106-D-00-50-HDW |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Polyoxymethylene (POM) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Natural |
| Impedance | 50 Ohms |
| Mounting Feature | Bulkhead |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.95 | |
| 10 | $ 1.48 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.96 | |||
| 1000 | $ 0.89 | |||
| 2500 | $ 0.81 | |||
Description
General part information
RF1-106 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
