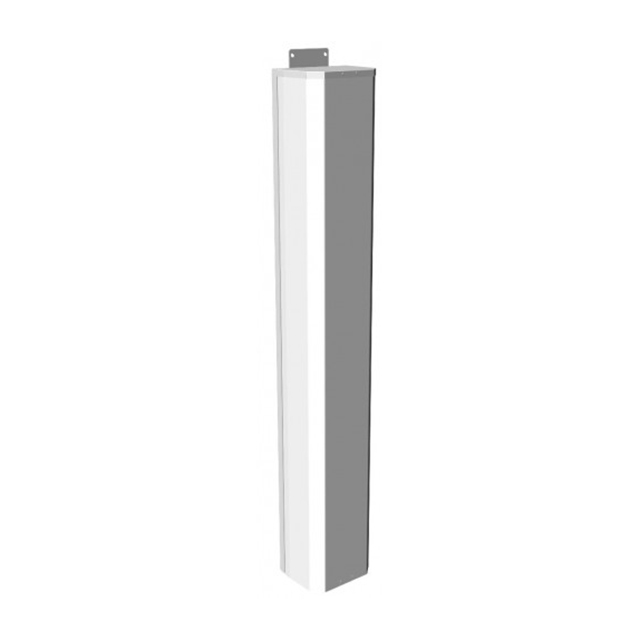

766.12.11.00
ActiveAmphenol Procom
X-POL PANEL ANTENNA 120DEG. 11
Deep-Dive with AI
Search across all available documentation for this part.
766.12.11.00
ActiveAmphenol Procom
X-POL PANEL ANTENNA 120DEG. 11
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 766.12.11.00 |
|---|---|
| Antenna Type | Panel |
| Frequency (Center/Band) | 425 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 470 MHz |
| Frequency Range [Min] | 380 MHz |
| Gain | 11 dB |
| Height (Max) [Max] | 72.441 in |
| Height (Max) [Max] | 184 cm |
| Ingress Protection | IP56 |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 800 W |
| Termination | 7/16 Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1258.01 | |
Description
General part information
766.12 Series
RF ANTENNA Panel 7/16 Female Bracket Mount
Documents
Technical documentation and resources
No documents available
