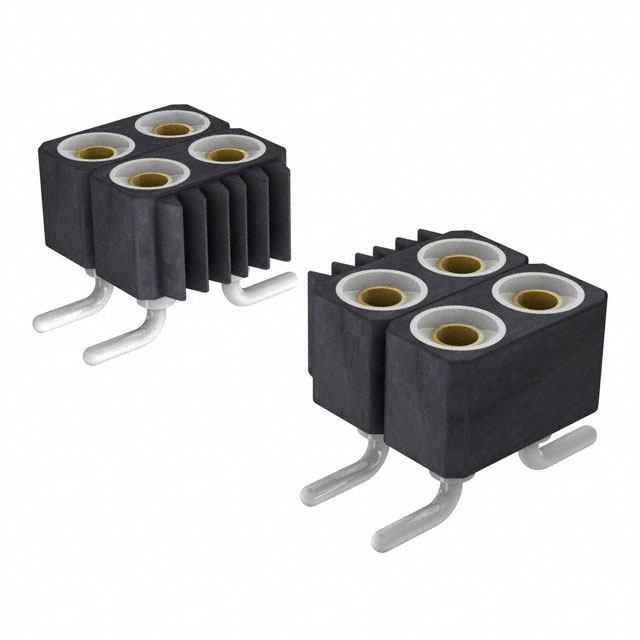

803-87-034-30-002101

Active

PRECI-DIP SA

CONN SOCKET 34POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

803-87-034-30-002101

Active

PRECI-DIP SA

CONN SOCKET 34POS 0.1 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	803-87-034-30-002101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

803-87 Series

...

Part	Contact Finish - Post	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Shape	Insulation Height	Insulation Height	Connector Type	Mounting Type	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Number of Rows	Contact Material	Termination	Insulation Material	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Features	Contact Length - Post	Contact Length - Post
PRECI-DIP SA 803-87-034-30-002101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular	5.6 mm	0.22 in	Socket	Surface Mount	34	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm
PRECI-DIP SA 803-87-012-66-001101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular			Socket	Through Hole	12	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Press-Fit Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm	7 mm	0.276 in	0.15 in	3.81 mm
PRECI-DIP SA 803-87-008-30-002191	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular	5.6 mm	0.22 in	Socket	Surface Mount	8	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm					Pick and Place
PRECI-DIP SA 803-87-020-10-012101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular			Socket	Through Hole	20	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm	4.2 mm	0.165 in	0.125 in	3.18 mm
PRECI-DIP SA 803-87-014-10-012101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular			Socket	Through Hole	14	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm	4.2 mm	0.165 in	0.125 in	3.18 mm
PRECI-DIP SA 803-87-054-10-001101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular			Socket	Through Hole	54	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm	7 mm	0.276 in				0.118 in	3 mm
PRECI-DIP SA 803-87-070-20-001101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular			Socket	Through Hole Right Angle	70	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm			0.126 in				3.2 mm
PRECI-DIP SA 803-87-006-10-268101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular	2.95 mm	0.116 in	Socket	Through Hole	6	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm						0.108 in	2.75 mm
PRECI-DIP SA 803-87-048-20-001101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular			Socket	Through Hole Right Angle	48	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm			0.126 in				3.2 mm
PRECI-DIP SA 803-87-044-10-268101	Tin	UL94 V-0	3 A	-55 °C	125 °C	All	Circular	2.95 mm	0.116 in	Socket	Through Hole	44	Black	Flash	Female Socket	2.54 mm	0.1 in	Push-Pull	2	Beryllium Copper	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.1 in	2.54 mm						0.108 in	2.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	306	$ 3.40

Description

General part information

803-87 Series

34 Position Socket Connector 0.100" (2.54mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available
