CONSMB012-G

Active

TE Connectivity Linx

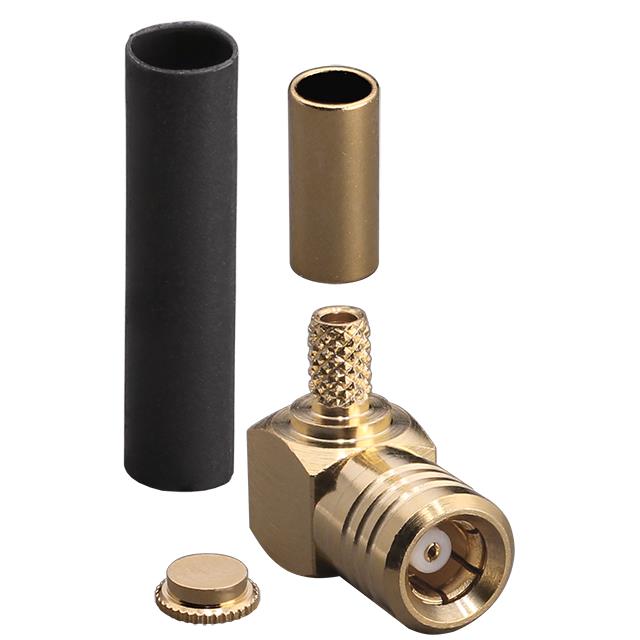

CONN SMB PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN SMB PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CONSMB012-G

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	750 VDC

Part	Voltage Rating	Body Finish	Mating Cycles	Contact Termination	Impedance	Fastening Type	Mounting Type	Connector Type	Frequency - Max [Max]	Housing Color	Connector Style	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Ports	Shield Termination	Body Material	Cable Group	Center Contact Plating
TE Connectivity Linx CONSMB012-G	750 VDC	Gold	500	Crimp	50 Ohms	Snap-On	Free Hanging (In-Line) Right Angle	Female Socket Plug	12 GHz	Gold	SMB	Beryllium Copper	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Crimp	Brass	316 RG-174	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
