M24308/24-5F

Active

Amphenol Positronic

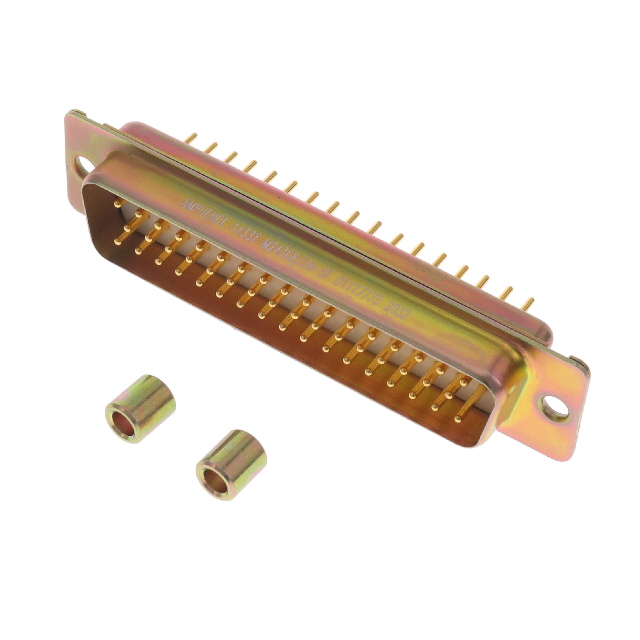

CONN D-SUB PLG 50POS PNL MT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/24-5F

Active

Amphenol Positronic

CONN D-SUB PLG 50POS PNL MT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/24-5F

Color	Natural
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel
Shell Size, Connector Layout	5
Termination	Solder
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG

M24308/24 Series

Part	Contact Material	Dielectric Material	Connector Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Flange Feature	Shell Material, Finish	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Color	Current Rating (Amps)	Features	Contact Finish	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing	Termination	Shell Size, Connector Layout	Number of Positions	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness
Amphenol Positronic M24308/24-27Z	Copper Alloy	Polyester Glass Filled	D-Sub	Signal	-55 °C	125 °C	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Steel Yellow Chromate Plated Zinc	Male Pins Plug	20 AWG	26 AWG	UL94 V-0	Natural	7.5 A	Mounting Brackets	Gold	2	B DB	3	0.283 in	7.2 mm	Solder
Amphenol Positronic M24308/24-32F	Copper Alloy	Polyester Glass Filled	D-Sub	Signal	-55 °C	125 °C	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Steel Yellow Cadmium Plated	Male Pins Plug	20 AWG	26 AWG	UL94 V-0	Natural	7.5 A	Mounting Brackets	Gold	2			0.283 in	7.2 mm	Solder	2	15
Amphenol Positronic M24308/24-2P	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT)	D-Sub	Signal	-55 °C	150 °C	Panel Mount Through Hole	Housing/Shell (Unthreaded)	Passivated Stainless Steel	Male Pins Plug			UL94 V-0	Black	7.5 A		Gold	2					Solder	2	15	1700 V	50 µin	1.27 µm
Amphenol Positronic M24308/24-5F	Copper Alloy	Polyester Glass Filled	D-Sub	Signal	-55 °C	125 °C	Panel Mount Through Hole	Housing/Shell (Unthreaded)	Steel Yellow Cadmium Plated	Male Pins Plug	20 AWG	26 AWG	UL94 V-0	Natural	7.5 A		Gold	3					Solder	5	50
Amphenol Positronic M24308/24-35F	Copper Alloy	Polyester Glass Filled	D-Sub	Signal	-55 °C	125 °C	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Steel Yellow Cadmium Plated	Male Pins Plug	20 AWG	26 AWG	UL94 V-0	Natural	7.5 A	Mounting Brackets	Gold	3			0.283 in	7.2 mm	Solder	5	50
