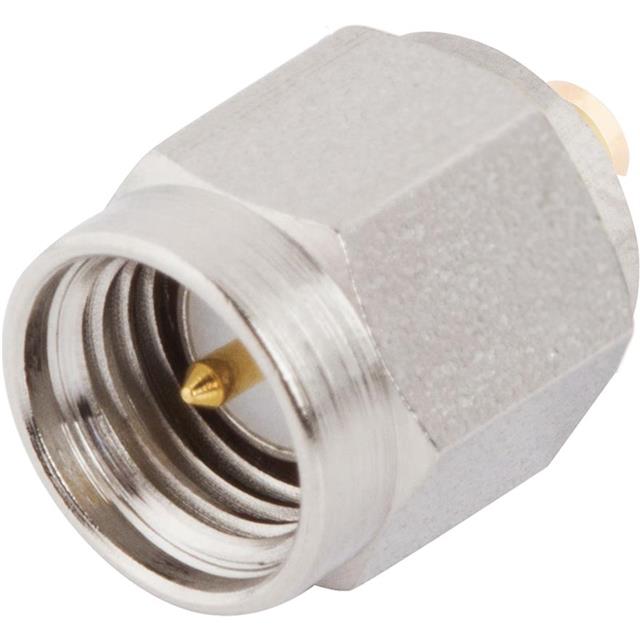

SF2906-6002

Active

Amphenol SV Microwave

CONN SMA PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF2906-6002

Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder

Part	Housing Color	Impedance	Contact Termination	Cable Group	Cable Group	Frequency - Max [Max]	Number of Ports	Center Contact Material	Connector Type	Shield Termination	Mating Cycles	Connector Style	Body Material	Dielectric Material	Mounting Type	Center Contact Plating
Amphenol SV Microwave SF2906-6002	Silver	50 Ohms	Solder	0.085 in	RG-405	18 GHz	1	Brass	Male Pin Plug	Solder	500	SMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
