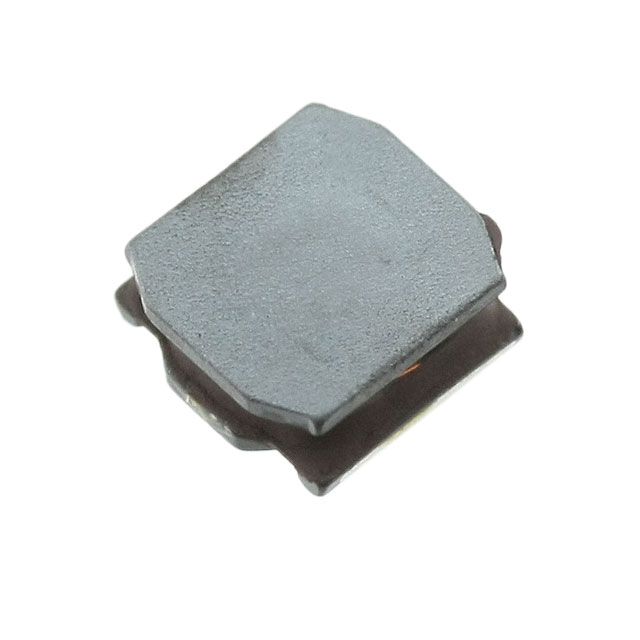

LQH44PN100MP0L

Obsolete

Murata Power Solutions Inc.

FIXED IND 10UH 1.17A 192MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

LQH44PN100MP0L

Obsolete

Murata Power Solutions Inc.

FIXED IND 10UH 1.17A 192MOHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQH44PN100MP0L

Current - Saturation (Isat)	1.15 A
Current Rating (Amps)	1.17 A
DC Resistance (DCR) [Max]	192 mOhm
Frequency - Self Resonant	25 MHz
Height - Seated (Max) [Max]	0.071 "
Height - Seated (Max) [Max]	1.8 mm
Inductance	10 µH
Inductance Frequency - Test	1 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1616 (4040 Metric)
Shielding	Shielded
Size / Dimension [x]	4 mm
Size / Dimension [x]	0.157 "
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Tolerance	20 %
Type	Wirewound, Drum Core

LQH44PN Series

Part	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Mounting Type	Type	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Package / Case	Current - Saturation (Isat)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Tolerance	Inductance	DC Resistance (DCR)
Murata Power Solutions Inc. LQH44PN100MP0L	1 MHz	0.157 in	4 mm	4 mm	0.157 "	192 mOhm	Surface Mount	Drum Core Wirewound	25 MHz	0.071 "	1.8 mm	Shielded	1616 (4040 Metric)	1.15 A	1.17 A	85 °C	-40 °C	Ferrite	20 %	10 µH
Murata Power Solutions Inc. LQH44PN150MJ0L	100 kHz	0.157 in	4 mm	4 mm	0.157 "	462 mOhm	Surface Mount	Drum Core Wirewound	25 MHz	0.047 in	1.2 mm	Shielded	1616 (4040 Metric)	430 mA	610 mA	85 °C	-40 °C	Ferrite	20 %	15 µH
Murata Power Solutions Inc. LQH44PN470MJ0L	100 kHz	0.157 in	4 mm	4 mm	0.157 "	1.22 Ohm	Surface Mount	Drum Core Wirewound	13 MHz	0.047 in	1.2 mm	Shielded	1616 (4040 Metric)		0.38 A	85 °C	-40 °C	Ferrite	20 %	47 µH
Murata Power Solutions Inc. LQH44PN4R7MGRL	1 MHz	0.157 in	4 mm	4 mm	0.157 "	156 mOhm	Surface Mount	Drum Core Wirewound	17 MHz	0.039 "	1 mm	Shielded	1616 (4040 Metric)	1.2 A	960 mA	105 ░C	-40 °C	Ferrite	20 %	4.7 ÁH
Murata Power Solutions Inc. LQH44PN1R0NJ0L	100 kHz	0.157 in	4 mm	4 mm	0.157 "	57.6 mOhm	Surface Mount	Drum Core Wirewound	130 MHz	0.047 in	1.2 mm	Shielded	1616 (4040 Metric)	2 A	1.53 A	85 °C	-40 °C	Ferrite	30 %	1 µH
Murata Power Solutions Inc. LQH44PN1R0NP0L	1 MHz	0.157 in	4 mm	4 mm	0.157 "	36 mOhm	Surface Mount	Drum Core Wirewound	90 MHz	0.071 "	1.8 mm	Shielded	1616 (4040 Metric)	2.95 A	2.45 A	85 °C	-40 °C	Ferrite	30 %	1 µH
Murata Power Solutions Inc. LQH44PN100MJ0L	100 kHz	0.157 in	4 mm	4 mm	0.157 "	249 mOhm	Surface Mount	Drum Core Wirewound	30 MHz	0.047 in	1.2 mm	Shielded	1616 (4040 Metric)	560 mA		85 °C	-40 °C	Ferrite	20 %	10 µH
Murata Power Solutions Inc. LQH44PN2R2MP0L	1 MHz	0.157 in	4 mm	4 mm	0.157 "	58.8 mOhm	Surface Mount	Drum Core Wirewound		0.071 "	1.8 mm	Shielded	1616 (4040 Metric)	2.5 A	1.8 A	85 °C	-40 °C	Ferrite	20 %	2.2 µH
Murata Power Solutions Inc. LQH44PN330MJ0L	100 kHz	0.157 in	4 mm	4 mm	0.157 "		Surface Mount	Drum Core Wirewound	15 MHz	0.047 in	1.2 mm	Shielded	1616 (4040 Metric)	360 mA	430 mA	85 °C	-40 °C	Ferrite	20 %	33 µH	888 mOhm
Murata Power Solutions Inc. LQH44PN3R3MJ0L	100 kHz	0.157 in	4 mm	4 mm	0.157 "		Surface Mount	Drum Core Wirewound	55 MHz	0.047 in	1.2 mm	Shielded	1616 (4040 Metric)	900 mA	1 A	85 °C	-40 °C	Ferrite	20 %	3.3 µH	106 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LQH44PN Series

10 µH Shielded Drum Core, Wirewound Inductor 1.17 A 192mOhm Max 1616 (4040 Metric)

Documents

Technical documentation and resources

No documents available
