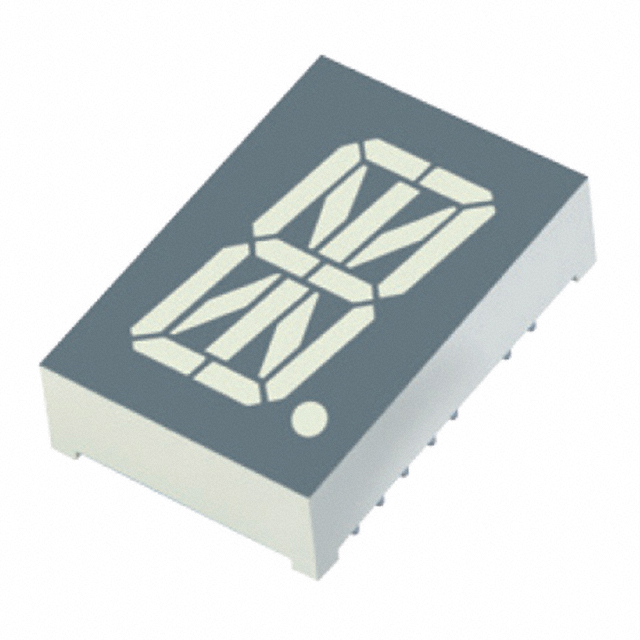

XAUY20A
ActiveSunLED
DISPLAY 16SEG 0.8" SGL YLW 18DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XAUY20A
ActiveSunLED
DISPLAY 16SEG 0.8" SGL YLW 18DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XAUY20A |
|---|---|
| Color | Yellow |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 20.32 mm |
| Digit/Alpha Size | 0.8 in |
| Display Type | 16-Segment, Alphanumeric |
| Millicandela Rating | 2 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 15.24 mm |
| Package / Case | 0.6 in |
| Package / Case | 18-DIP |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 27.7 mm |
| Size / Dimension [x] | 1.091 in |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [y] | 0.787 in |
| Size / Dimension [z] | 0.335 " |
| Size / Dimension [z] | 8.5 mm |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 180 | $ 1.85 | |
Description
General part information
XAUY20 Series
Display Modules - LED Character and Numeric Yellow 16-Segment, Alphanumeric 1 Character Common Anode 1.95V 10mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)
