CS35L00-CNZR

Obsolete

Cirrus Logic Inc.

IC AMP CLASS D MONO 2.83W 10DFN

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC AMP CLASS D MONO 2.83W 10DFN

Technical Specifications

Parameters and characteristics for this part

Specification	CS35L00-CNZR

Features	Short-Circuit and Thermal Protection, Differential Inputs, Depop, Shutdown
Max Output Power x Channels @ Load	2.83 W
Max Output Power x Channels @ Load [custom]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Output Type	1-Channel (Mono)

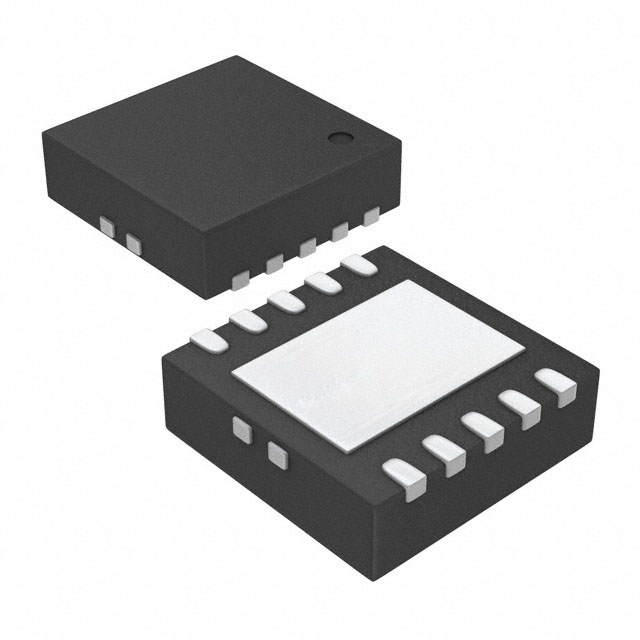

Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.5 V

Part	Package / Case	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Output Type	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Features
Cirrus Logic Inc. CS35L00-CNZ	10-VFDFN Exposed Pad	2.83 W	1	1-Channel (Mono)	Class D	2.5 V	5.5 V	Surface Mount	10-DFN (3x3)	-10 °C	70 °C	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown
Cirrus Logic Inc. CS35L00-CNZR	10-VFDFN Exposed Pad	2.83 W	1	1-Channel (Mono)	Class D	2.5 V	5.5 V	Surface Mount	10-DFN (3x3)	-10 °C	70 °C	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 10-DFN (3x3)

Technical documentation and resources
