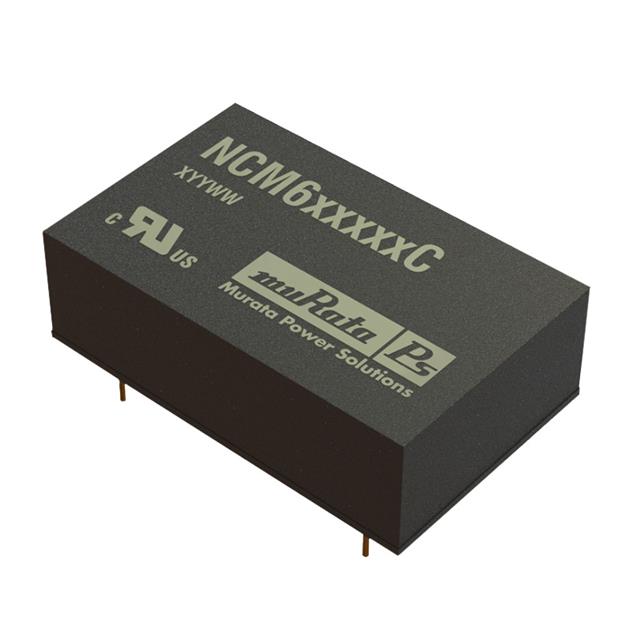

NCM6D0515C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NCM6D0515C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NCM6D0515C

Applications	ITE (Commercial), Medical
Control Features	Active Low, Enable
Features	SCP, OTP, Remote On/Off, UVLO
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	23-DIP Module
Package / Case	7 Leads
Power (Watts)	6 W
Type	Isolated Module
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	5.2 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

NCM6D Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Isolation	Voltage - Input (Min) [Min]	Control Features	Number of Outputs	Efficiency	Voltage - Output 2	Applications	Features	Voltage - Output 1	Package / Case	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Type	Package / Case	Current - Output (Max) [Max]
Murata Power Solutions Inc. NCM6D0512EC	85 °C	-40 °C	9 V	Through Hole	5.2 kV	4.5 V	Active Low Enable	2	83 %	-12 V	ITE (Commercial) Medical	OTP Remote On/Off SCP UVLO	12 V	24-DIP Module 8 Leads	250 mA	250 mA	6 W	Isolated Module
Murata Power Solutions Inc. NCM6D0505C	85 °C	-40 °C	9 V	Through Hole	5.2 kV	4.5 V	Active Low Enable	2	80 %	-5 V	ITE (Commercial) Medical	OTP Remote On/Off SCP UVLO	5 V	23-DIP Module			6 W	Isolated Module	7 Leads	600 mA
Murata Power Solutions Inc. NCM6D4815EC	85 °C	-40 °C	75 V	Through Hole	5.2 kV	18 V	Active Low Enable	2	83 %	-15 V	ITE (Commercial) Medical	OTP Remote On/Off SCP UVLO	15 V	24-DIP Module 8 Leads			6 W	Isolated Module
Murata Power Solutions Inc. NCM6D0505EC	85 °C	-40 °C	9 V	Through Hole	5.2 kV	4.5 V	Active Low Enable	2	80 %	-5 V	ITE (Commercial) Medical	OTP Remote On/Off SCP UVLO	5 V	24-DIP Module 8 Leads			6 W	Isolated Module		600 mA
Murata Power Solutions Inc. NCM6D4812C	85 °C	-40 °C	75 V	Through Hole	5.2 kV	18 V	Active Low Enable	2		-12 V	ITE (Commercial) Medical	OTP Remote On/Off SCP UVLO	12 V	23-DIP Module	250 mA	250 mA	6 W	Isolated Module	7 Leads
Murata Power Solutions Inc. NCM6D0512C	85 °C	-40 °C	9 V	Through Hole	5.2 kV	4.5 V	Active Low Enable	2	83 %	-12 V	ITE (Commercial) Medical	OTP Remote On/Off SCP UVLO	12 V	23-DIP Module	250 mA	250 mA	6 W	Isolated Module	7 Leads
Murata Power Solutions Inc. NCM6D4805C	85 °C	-40 °C	75 V	Through Hole	5.2 kV	18 V	Active Low Enable	2	80 %	-5 V	ITE (Commercial) Medical	OTP Remote On/Off SCP UVLO	5 V	23-DIP Module			6 W	Isolated Module	7 Leads	600 mA
Murata Power Solutions Inc. NCM6D0515C	85 °C	-40 °C	9 V	Through Hole	5.2 kV	4.5 V	Active Low Enable	2		-15 V	ITE (Commercial) Medical	OTP Remote On/Off SCP UVLO	15 V	23-DIP Module			6 W	Isolated Module	7 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NCM6D Series

Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 4.5V - 9V Input
