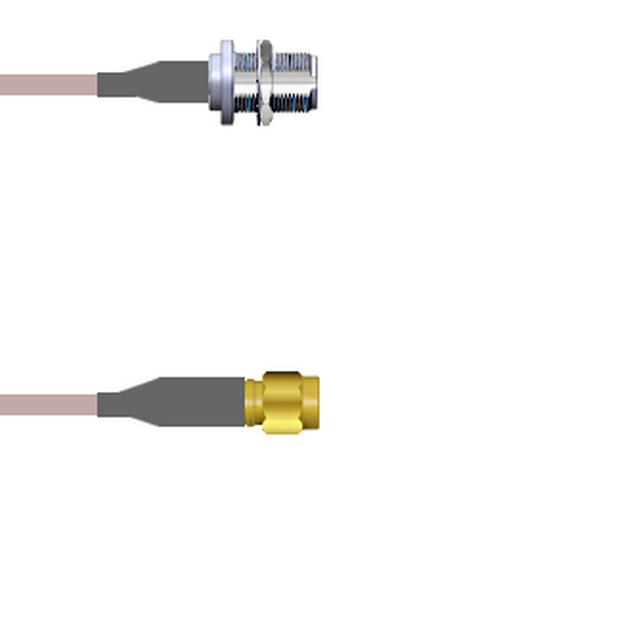

Q-2503F000H1.5M

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 4.9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 4.9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2503F000H1.5M

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	Overall Impedance	1st Connector Mounting Type	1st Connector	Color	Cable Type	Style	Length	Length	Length	2nd Connector Mounting Feature	2nd Connector Mounting Type	2nd Connector	1st Contact Gender	Frequency - Max [Max]	2nd Contact Gender	Features
Amphenol Custom Cable Q-2503F000H1.5M	50 Ohms	Free Hanging (In-Line)	SMA Plug	Copper	RG-142	SMA to N-Type	59.1 in	4.9 ft	1.5 m	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Male	11 GHz	Female	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-142 59.1" (1.5m) 4.9'
