DB0870505H1A-BT0
ActiveWakefield-Vette

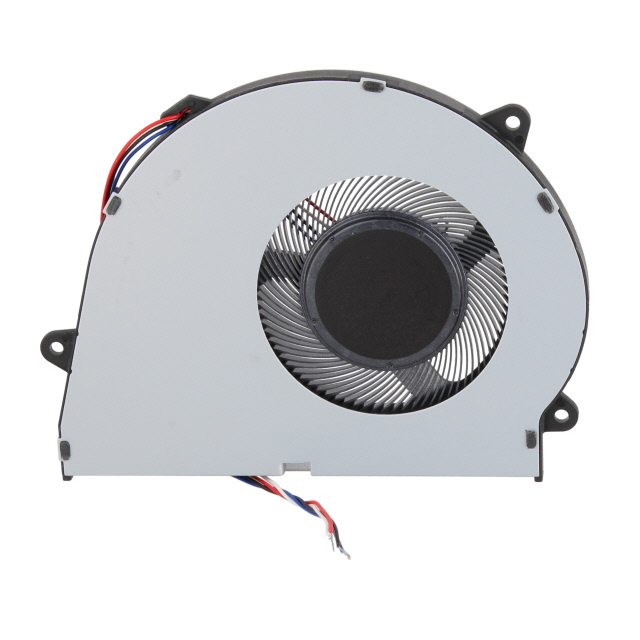

FAN BLOWER 74.5X5MM 5VDC RECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DB0870505H1A-BT0
ActiveWakefield-Vette
FAN BLOWER 74.5X5MM 5VDC RECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DB0870505H1A-BT0 |
|---|---|
| Air Flow | 0.129 m³/min |
| Air Flow | 4.6 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 450 mA |
| Fan Type | Blower |
| Features | Speed Sensor (Tach), PWM Control |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 50000 Hrs |
| Noise | 40.9 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.25 W |
| RPM | 4500 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 74.5 mm |
| Size / Dimension [y] | 90 mm |
| Static Pressure | 0.571 in H2O |
| Static Pressure | 142.2 Pa |
| Termination | 4 Position Rectangular Connector |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 5.5 V |
| Voltage Range [Min] | 2.5 V |
| Weight | 0.091 lb |
| Weight | 41.28 g |
| Width [y] | 5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.27 | |
| 10 | $ 12.63 | |||
| 25 | $ 12.03 | |||
| 50 | $ 11.60 | |||
| 100 | $ 11.18 | |||
| 250 | $ 10.65 | |||
| 500 | $ 10.26 | |||
Description
General part information
DB0870505 Series
Fan Blower 5VDC Rectangular/Rounded - 74.5mm L x 90mm H Ball 4.6 CFM (0.129m³/min) 4 Position Rectangular Connector
