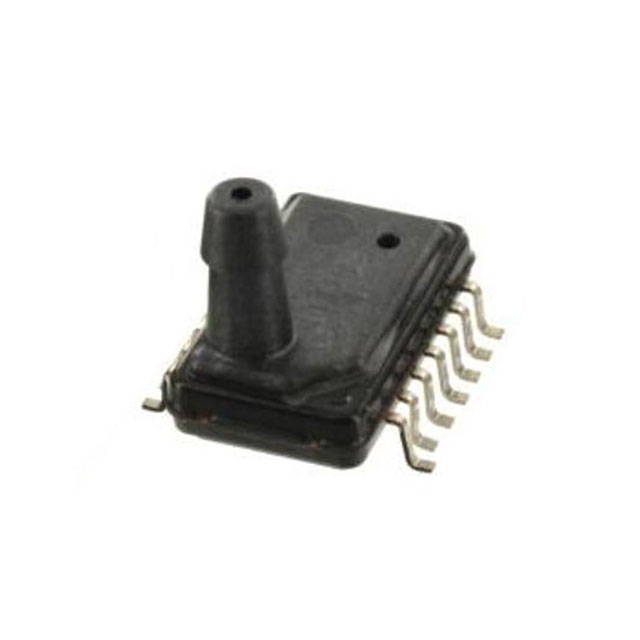

5525DSO-SB001GS

Obsolete

TE Connectivity Measurement Specialties

SENS 1PSIG 0.12" 24BIT 14SMD MOD

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENS 1PSIG 0.12" 24BIT 14SMD MOD

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Output	Output Type	Port Style	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Port Size	Port Size	Accuracy	Pressure Type	Termination Style	Mounting Type	Features	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Measurement Specialties 5525DSO-SB001GS	Board Mount	24 b	I2C SPI	Barbed	14-SMD Module	3.6 V	1.8 V	14-SMD Module	Male - Tube	0.12 " 3 mm	0.25 %	Vented Gauge	Gull Wing	Surface Mount	Temperature Compensated	6.89 kPa	1 PSI	20 PSI	137.9 kPa	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.12" (3mm) Tube 24 b 14-SMD Module
