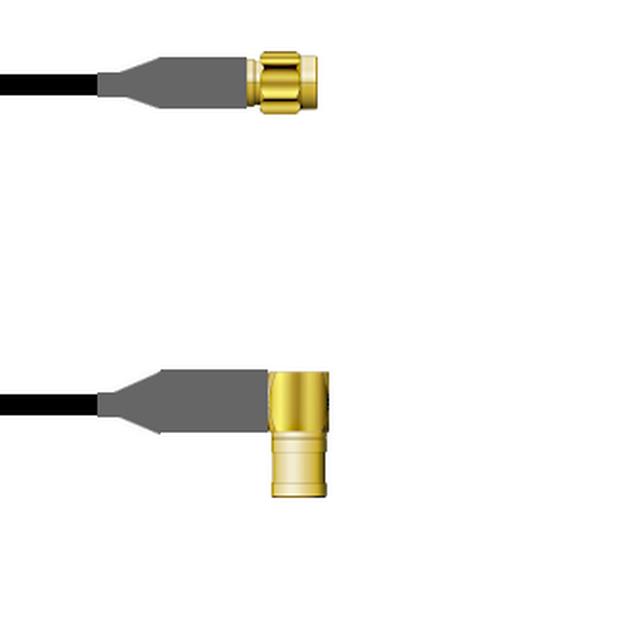

Q-3D03U0008.75M
ActiveAmphenol Custom Cable
COAX CBL SMA TO SMB 29.5"
Deep-Dive with AI
Search across all available documentation for this part.
Q-3D03U0008.75M
ActiveAmphenol Custom Cable
COAX CBL SMA TO SMB 29.5"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3D03U0008.75M |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMB Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 90.88 | |
| 25 | $ 89.10 | |||
| 50 | $ 87.32 | |||
| 100 | $ 85.54 | |||
| 250 | $ 83.76 | |||
Description
General part information
Q-3D03U0 Series
Cable Assembly Coaxial SMA to SMB RG-58 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
