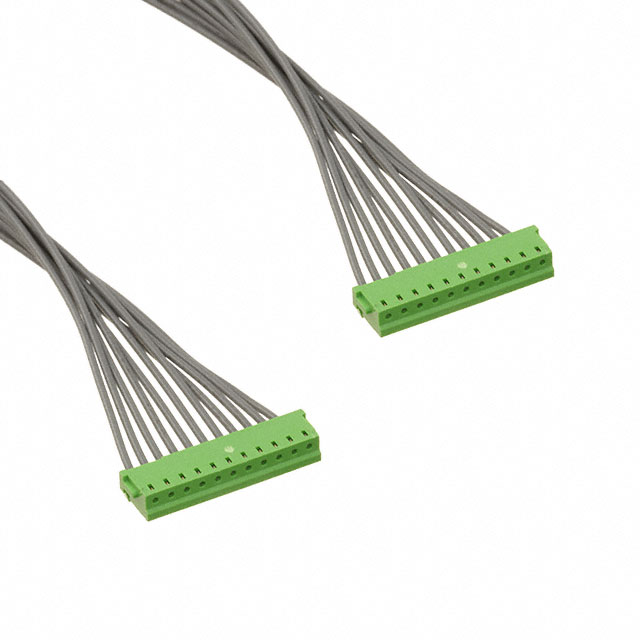

A11ZR11ZR28H152B

Active

JST Sales America Inc.

JUMPER 11ZR-8M-P - 11ZR-8M-P 6"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 11ZR-8M-P - 11ZR-8M-P 6"

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish	Color	Number of Positions	Length	Length	Length	Number of Rows	Connector Type	Length [x]	Length [x]	Length [x]	Length
JST Sales America Inc. A11ZR11ZR28H254B	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11	10 in	0.833 ft	254 mm	1	Socket to Socket
JST Sales America Inc. A11ZR11ZR28H102A	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11				1	Socket to Socket Reversed	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A11ZR11ZR28H152A	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11	6 "		152.4 mm	1	Socket to Socket Reversed				0.5 '
JST Sales America Inc. A11ZR11ZR28H51A	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11	2 "	0.167 '	50.8 mm	1	Socket to Socket Reversed
JST Sales America Inc. A11ZR11ZR28H203A	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11	8 in	0.667 ft	203.2 mm	1	Socket to Socket Reversed
JST Sales America Inc. A11ZR11ZR28H305B	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11		1 ft	304.8 mm	1	Socket to Socket
JST Sales America Inc. A11ZR11ZR28H51B	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11	2 "	0.167 '	50.8 mm	1	Socket to Socket
JST Sales America Inc. A11ZR11ZR28H102B	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11				1	Socket to Socket	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A11ZR11ZR28H152B	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11	6 "		152.4 mm	1	Socket to Socket				0.5 '
JST Sales America Inc. A11ZR11ZR28H305A	0.059 "	1.5 mm	IDC	Tin	Gray Individual	11		1 ft	304.8 mm	1	Socket to Socket Reversed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
