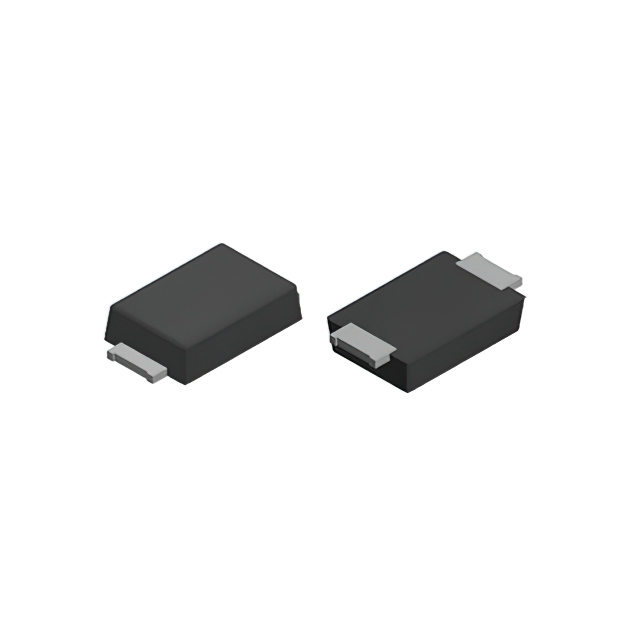

ME01HD10-TE12L

Active

Kyocera AVX

DIODE SCHOTTKY 100V 1A SOD-128

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE SCHOTTKY 100V 1A SOD-128

Technical Specifications

Parameters and characteristics for this part

Specification	ME01HD10-TE12L

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	50 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-214AC, SMA Flat Leads
Speed	200 mA, 500 ns
Supplier Device Package	SMA-FL
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	850 mV

Part	Speed	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Reverse Recovery Time (trr)
Kyocera AVX ME01DA40-TE12L	Standard Recovery >500ns	200 mA	1 A	10 µA	Standard	SOD-128	Surface Mount	400 V	1.05 V	150 °C	-55 °C	SOD-128
Kyocera AVX ME01FA20-TE12L		200 mA 500 ns	1 A	10 µA	Standard	SOD-128	Surface Mount	200 V		150 °C	-55 °C	SOD-128	30 ns
Kyocera AVX ME01FA60-TE12L		200 mA 500 ns	1 A	10 µA	Standard	SOD-128	Surface Mount	600 V	1.39 V	150 °C	-55 °C	SOD-128	80 ns
Kyocera AVX ME01EA06-TE12L		200 mA 500 ns	1 A	100 µA	Schottky	SOD-128	Surface Mount	60 V	580 mV	150 °C	-55 °C	SOD-128
Kyocera AVX ME01EA045-TE12L		200 mA 500 ns	1 A	100 µA	Schottky	SMA-FL	Surface Mount	45 V	550 mV	150 °C	-55 °C	DO-214AC SMA Flat Leads
Kyocera AVX ME01HD10-TE12L		200 mA 500 ns	1 A	50 µA	Schottky	SMA-FL	Surface Mount	100 V	850 mV	150 °C	-55 °C	DO-214AC SMA Flat Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 1A Surface Mount SMA-FL
