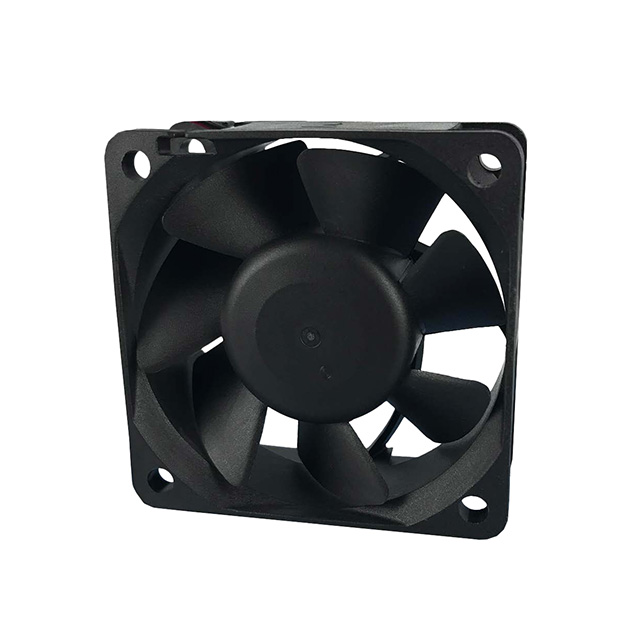

FAD1-06025DBHW12-A

Active

Qualtek

FAN AXIAL 60X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Axial Fans

FAD1-06025DBHW12-A

Active

Qualtek

FAN AXIAL 60X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Axial Fans

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FAD1-06025DBHW12-A

Air Flow	23.4 CFM
Air Flow	0.655 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.88 W
RPM	4500 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	62.8 Pa
Static Pressure	0.252 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	21.6 VDC
Weight	62.14 g
Weight	0.137 lb
Width [y]	25 mm

FAD1-06025 Series

Part	Bearing Type	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Noise	Fan Type	Current Rating (Amps)	Voltage - Rated	RPM	Width [y]	Approval Agency	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Static Pressure	Static Pressure	Termination	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Air Flow	Air Flow
Qualtek FAD1-06025BBLW12-A	Ball	70000 Hrs	4.5 V	5.5 V	Plastic	18.9 dB(A)	Tubeaxial	0.2 A	5 V	2500 RPM	25 mm	CE cURus TUV	Plastic	70 °C	70 °C	-10 °C	-10 °C	62.14 g	0.137 lb	0.08 in H2O	19.9 Pa	2 Wire Leads	60 mm	60 mm
Qualtek FAD1-06025DBMW12-A	Ball	70000 Hrs	21.6 VDC	26.4 VDC	Plastic	28.1 dB(A)	Tubeaxial	0.09 A	24 VDC	3500 RPM	25 mm	CE cURus TUV	Plastic	70 °C	70 °C	-10 °C	-10 °C	62.14 g	0.137 lb	0.152 in H2O	37.9 Pa	2 Wire Leads	60 mm	60 mm	2.16 W
Qualtek FAD1-06025DBJW12-A	Ball	70000 Hrs	21.6 VDC	26.4 VDC	Plastic	38.4 dB(A)	Tubeaxial	120 mA	24 VDC	5000 RPM	25 mm	CE cURus TUV	Plastic	70 °C	70 °C	-10 °C	-10 °C	62.14 g	0.137 lb	0.298 in H2O	74.2 Pa	2 Wire Leads	60 mm	60 mm	2.88 W	0.731 m³/min	26.1 CFM
Qualtek FAD1-06025DHLW12-A	Hydrodynamic	40000 Hrs	21.6 VDC	26.4 VDC	Plastic	18.9 dB(A)	Tubeaxial	60 mA	24 VDC	2500 RPM	25 mm	CE cURus TUV	Plastic	70 °C	70 °C	-10 °C	-10 °C	62.14 g	0.137 lb	0.08 in H2O	19.9 Pa	2 Wire Leads	60 mm	60 mm	720 mW	0.356 mł/min	12.7 CFM
Qualtek FAD1-06025DBHW12-A	Ball	70000 Hrs	21.6 VDC	26.4 VDC	Plastic		Tubeaxial	120 mA	24 VDC	4500 RPM	25 mm	CE cURus TUV	Plastic	70 °C	70 °C	-10 °C	-10 °C	62.14 g	0.137 lb	0.252 in H2O	62.8 Pa	2 Wire Leads	60 mm	60 mm	2.88 W	0.655 m³/min	23.4 CFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.95
		10	$ 8.21
		30	$ 7.41
		50	$ 7.06
		100	$ 6.60

Description

General part information

FAD1-06025 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 23.4 CFM (0.655m³/min) 2 Wire Leads
