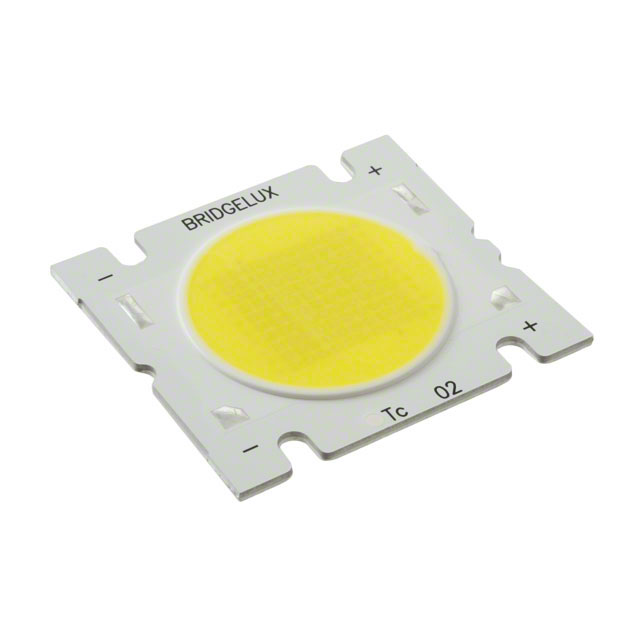

BXRA-50C9000-J-00

Obsolete

BRIDGELUX

LED COB RS COOL WHT SQUARE 5000K

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED COB RS COOL WHT SQUARE 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-50C9000-J-00

CCT (K)	5000 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	3.5 A
Current - Test	2.8 A
Height [z]	3 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	122 lm/W
Luminous Flux @ Current/Temperature	10060 lm
Size / Dimension [x]	45.6 mm
Size / Dimension [y]	2 in
Type	Chip On Board (COB)
Viewing Angle	120 °

Part	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Current - Max [Max]	Viewing Angle	CCT (K)	Lumens/Watt @ Current - Test	Color	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Current - Test	Configuration	Lens Type	Type	Voltage - Forward (Vf) (Typ)	Temperature - Test	Size / Dimension [diameter]
BRIDGELUX BXRA-50C9000-J-04	10060 lm	70	3.5 A	120 °	5000 K	122 lm/W	Cool White	45.6 mm	2 in	3 mm	2.8 A	Square	Domed	Chip On Board (COB)
BRIDGELUX BXRA-50C1100-B-04	1320 lm	70	750 mA	120 °	5000 K	128 lm/W	Cool White	22.8 mm	25.8 mm	3 mm	500 mA	Rectangle	Domed	Chip On Board (COB)
BRIDGELUX BXRA-50C1100-B-00	1320 lm	70	750 mA	120 °	5000 K	128 lm/W	Cool White	22.8 mm	25.8 mm	3 mm	500 mA	Rectangle	Domed	Chip On Board (COB)
BRIDGELUX BXRA-50C1600-B-00	1920 lm	70	750 mA	120 °	5000 K	130 lm/W	Cool White	22.8 mm	25.8 mm	3 mm	500 mA	Rectangle	Domed	Chip On Board (COB)
BRIDGELUX BXRA-50C2600-B-00	3100 lm	70	750 mA	120 °	5000 K	120 lm/W	Cool White	22.8 mm	25.8 mm	3 mm		Rectangle	Domed	Chip On Board (COB)	37 V
BRIDGELUX BXRA-50C1600-B-04	1920 lm	70	750 mA	120 °	5000 K	130 lm/W	Cool White	22.8 mm	25.8 mm	3 mm	500 mA	Rectangle	Domed	Chip On Board (COB)
BRIDGELUX BXRA-50C9000-J-00	10060 lm	70	3.5 A	120 °	5000 K	122 lm/W	Cool White	45.6 mm	2 in	3 mm	2.8 A	Square	Domed	Chip On Board (COB)
BRIDGELUX BXRA-50C1000-A-04	1000 lm	70	350 mA	120 °		105 lm/W	Cool White			3 mm	350 mA	Starboard	Flat	Chip On Board (COB)	27.3 V	85 °C	20.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) RS White, Cool Square
