TR9KZ3160LCPCIMR6B

Active

GlobTek, Inc.

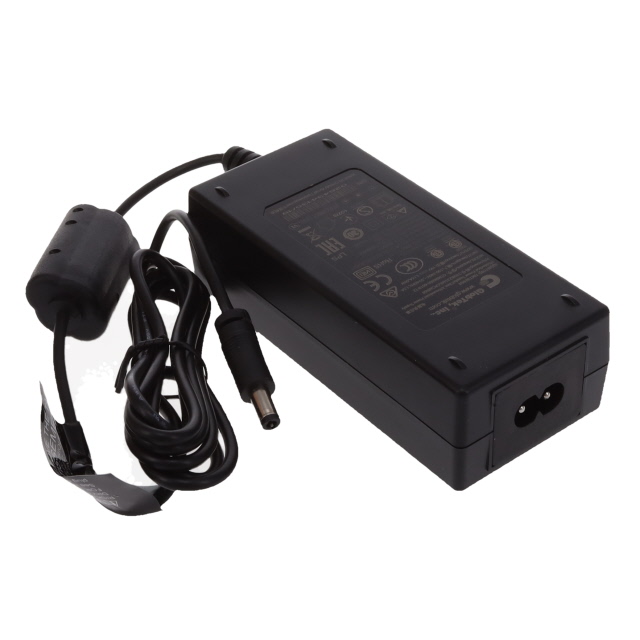

AC/DC DESKTOP ADAPTER 19V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 19V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KZ3160LCPCIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	RCM, VCCI, FCC, CE, EAC, PSE, CB, CCC, LPS, cETLus, ETL, BSMI, UKRSepro, S-Mark
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	3.16 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

Part	Standard Number	No Load Power Consumption [Max]	Voltage - Output	Input Connector	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [x]	Applications	Current - Output (Max) [Max]	Form	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Power (Watts)	Polarization	Efficiency
GlobTek, Inc. TR9KZ3160LCPCIMR6B	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	150 mW	19 V	IEC 320-C8	BSMI CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro VCCI	-20 C	40 °C	International	Barrel Plug	2.5 mm 5.5 mm	11 mm	Household Appliances ITE (Commercial) Medical	3.16 A	Desktop (Class II)	60.2 in	1.53 m	90 VAC	264 VAC	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Cord	60 W	Positive Center	CoC Tier 2 Level VI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19V 60 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
