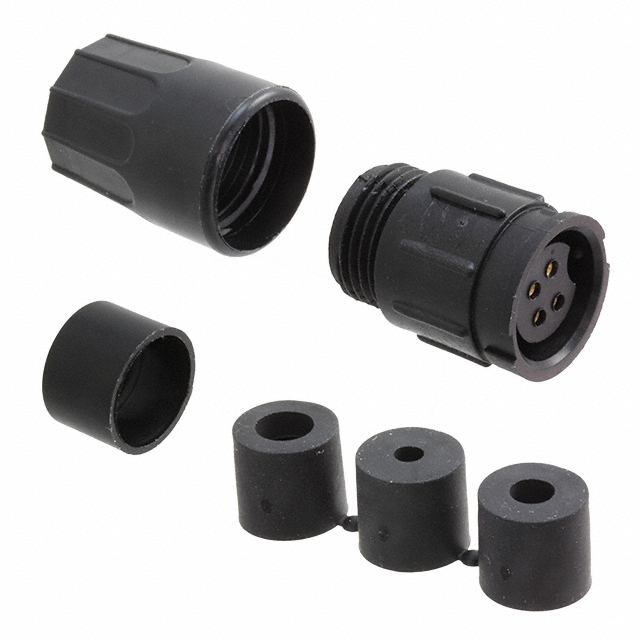

5282-4SG-3DC

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Backshell Material, Plating	Voltage Rating	Orientation	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish - Mating	Ingress Protection	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Mounting Type	Current Rating (Amps)	Primary Material	Color	Number of Positions	Features	Connector Type
Conxall/Switchcraft 5282-4SG-324	Brass	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Unshielded	Gold	Weathertight	0.24 in	6.86 mm	6.1 mm	0.27 in	Free Hanging (In-Line)	5.6 A	Plastic	Black	4	Backshell	Receptacle Female Sockets
Conxall/Switchcraft 5282-4SG-528	Brass	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Unshielded	Gold	Weathertight	0.28 in	7.37 mm	7.11 mm	0.29 in	Free Hanging (In-Line)	5.6 A	Plastic	Black	4	Backshell Cable Clamp	Receptacle Female Sockets
Conxall/Switchcraft 5282-4SG-524	Brass	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Unshielded	Gold	Weathertight	0.24 in	6.86 mm	6.1 mm	0.27 in	Free Hanging (In-Line)	5.6 A	Plastic	Black	4	Backshell Cable Clamp	Receptacle Female Sockets
Conxall/Switchcraft 5282-4SG-3DC	Brass	Nylon Polyamide (PA)	600 V	Keyed	Bayonet Lock	-40 °C	115 °C	Unshielded	Gold	Weathertight					Free Hanging (In-Line)	5.6 A	Plastic	Black	4	Backshell	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
