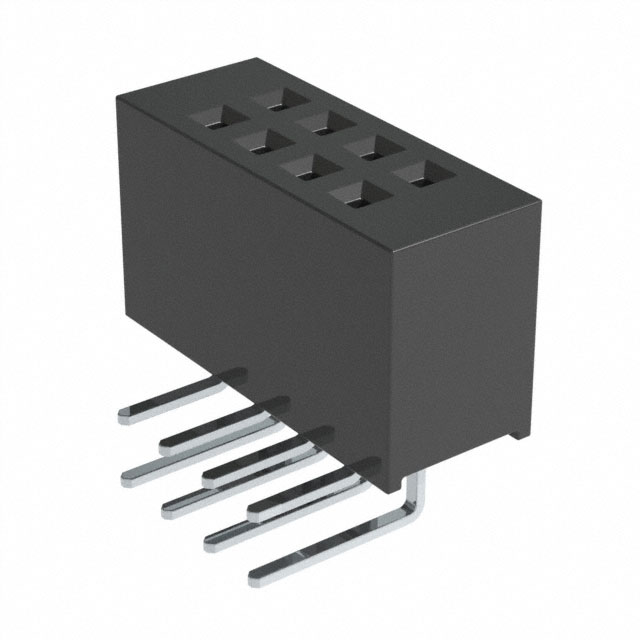

SFH11-PBEC-D04-RA-BK-M181

Active

Sullins Connector Solutions

CONN HDR 8POS 0.1 TIN PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

SFH11-PBEC-D04-RA-BK-M181

Active

Sullins Connector Solutions

CONN HDR 8POS 0.1 TIN PCB R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFH11-PBEC-D04-RA-BK-M181

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SFH11 Series

Part	Insulation Material	Mounting Type	Contact Shape	Features	Number of Positions Loaded	Insulation Color	Current Rating (Amps)	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Contact Finish - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Number of Positions	Contact Finish Thickness - Post	Termination	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Insulation Height	Insulation Height	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]
Sullins Connector Solutions SFH11-NPPC-D07-ST-BK	Nylon Polyamide (PA)	Through Hole	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Phosphor Bronze	14	Flash	Solder	3.2 mm	0.126 in	UL94 V-0	0.335 "	8.51 mm	2	2.54 mm	0.1 in
Sullins Connector Solutions SFH11-PBEC-D04-RA-BK-M181	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Square		All	Black	3 A		Header	Push-Pull		Tin	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Brass	8		Solder		0.106 in	UL94 V-0	0.236 in	6 mm	2	2.54 mm	0.1 in	2.54 çm	100 çin	2.54 µm	100 µin	2.69 mm
Sullins Connector Solutions SFH11-PBPC-D06-RA-BK	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Brass	12	Flash	Solder		0.106 in	UL94 V-0	0.236 in	6 mm	2	2.54 mm	0.1 in					2.69 mm
Sullins Connector Solutions SFH11-PPPC-D30-RA-BK	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Phosphor Bronze	60	Flash	Solder		0.106 in	UL94 V-0	0.236 in	6 mm	2	2.54 mm	0.1 in					2.69 mm
Sullins Connector Solutions SFH11-NBPC-D03-RA-BK	Nylon Polyamide (PA)	Through Hole Right Angle	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Brass	6	Flash	Solder		0.106 in	UL94 V-0	0.236 in	6 mm	2	2.54 mm	0.1 in					2.69 mm
Sullins Connector Solutions SFH11-NPPC-D25-RA-BK	Nylon Polyamide (PA)	Through Hole Right Angle	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Phosphor Bronze	50	Flash	Solder		0.106 in	UL94 V-0	0.236 in	6 mm	2	2.54 mm	0.1 in					2.69 mm
Sullins Connector Solutions SFH11-NBPC-D04-ST-BK	Nylon Polyamide (PA)	Through Hole	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Brass	8	Flash	Solder	3.2 mm	0.126 in	UL94 V-0	0.335 "	8.51 mm	2	2.54 mm	0.1 in
Sullins Connector Solutions SFH11-PPPC-D13-RA-BK	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Phosphor Bronze	26	Flash	Solder		0.106 in	UL94 V-0	0.236 in	6 mm	2	2.54 mm	0.1 in					2.69 mm
Sullins Connector Solutions SFH11-PPPC-D05-RA-BK	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Phosphor Bronze	10	Flash	Solder		0.106 in	UL94 V-0	0.236 in	6 mm	2	2.54 mm	0.1 in					2.69 mm
Sullins Connector Solutions SFH11-NPPC-D32-RA-BK	Nylon Polyamide (PA)	Through Hole Right Angle	Square	Polarizing Key	All	Black	3 A	Flash	Header	Push-Pull	Gold	Gold	0.1 in	2.54 mm	-40 °C	105 ░C	Female Socket	Phosphor Bronze	64	Flash	Solder		0.106 in	UL94 V-0	0.236 in	6 mm	2	2.54 mm	0.1 in					2.69 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.40

Description

General part information

SFH11 Series

8 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin

Documents

Technical documentation and resources

No documents available
