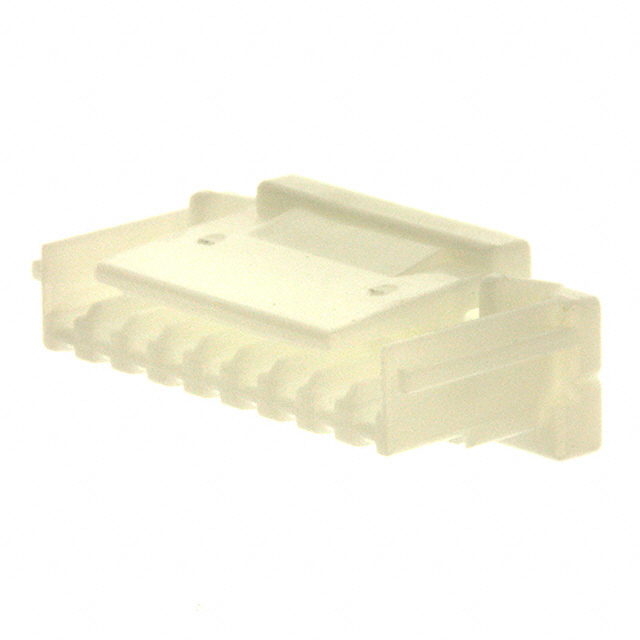

ZER-09V-S

Active

JST Sales America Inc.

CONN RCPT HSG 9POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

ZER-09V-S

Active

JST Sales America Inc.

CONN RCPT HSG 9POS 1.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZER-09V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	1.5 mm
Pitch [x]	0.059 in

ZER Series

Part	Fastening Type	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Mounting Type	Contact Termination	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Note	Contact Type	Number of Positions
JST Sales America Inc. ZER-06V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	6	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket
JST Sales America Inc. ZER-07V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	7	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket
JST Sales America Inc. ZER-16V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp		1	1.5 mm	0.059 in	Contacts Not Included	Female Socket	16
JST Sales America Inc. ZER-14V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	14	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket
JST Sales America Inc. ZER-15V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	15	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket
JST Sales America Inc. ZER-08V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	8	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket
JST Sales America Inc. ZER-02V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	2	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket
JST Sales America Inc. ZER-10V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	10	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket
JST Sales America Inc. ZER-09V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	9	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket
JST Sales America Inc. ZER-11V-S	Latch Holder	Natural	Receptacle	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	11	1	1.5 mm	0.059 in	Contacts Not Included	Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.23
		10	$ 0.19
		25	$ 0.17
		50	$ 0.16
		100	$ 0.15
		250	$ 0.13
		500	$ 0.12
		1000	$ 0.10
		2500	$ 0.09

Description

General part information

ZER Series

9 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
