18K203-270L5

Active

Rosenberger

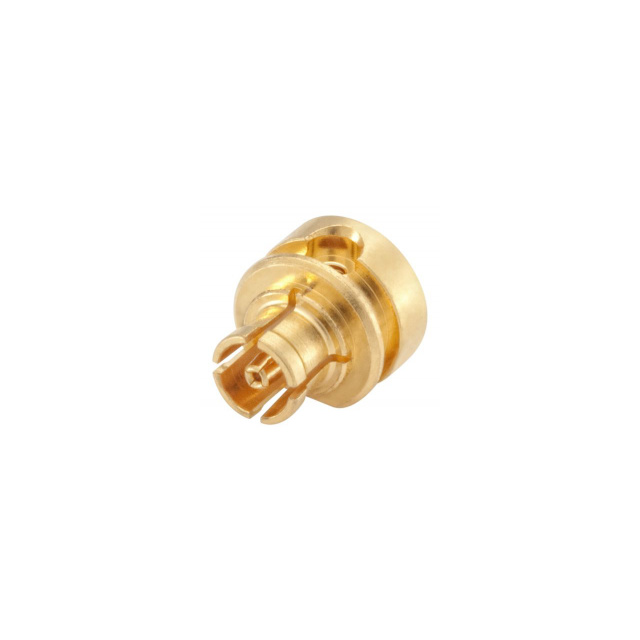

MINI SMP RIGHT ANGLE JACK

Search across all available documentation for this part.

Active

Rosenberger

MINI SMP RIGHT ANGLE JACK

Technical Specifications

Parameters and characteristics for this part

Specification	18K203-270L5

Body Finish	Gold
Body Material	Brass
Cable Group	UT-47
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, SMP
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	325 V

Part	Fastening Type	Housing Color	Cable Group	Shield Termination	Voltage Rating	Number of Ports	Mating Cycles	Contact Termination	Connector Type	Frequency - Max [Max]	Impedance	Body Material	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Center Contact Plating	Mounting Type	Center Contact Material	Dielectric Material
Rosenberger 18K203-270L5	Snap-On	Gold	UT-47	Solder	325 V	1	500	Solder	Female Socket Jack	65 GHz	50 Ohms	Brass	Gold	155 °C	-65 ░C	Mini SMP	Gold	Free Hanging (In-Line)	Beryllium Copper	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.51

General part information

SMP, Mini Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
