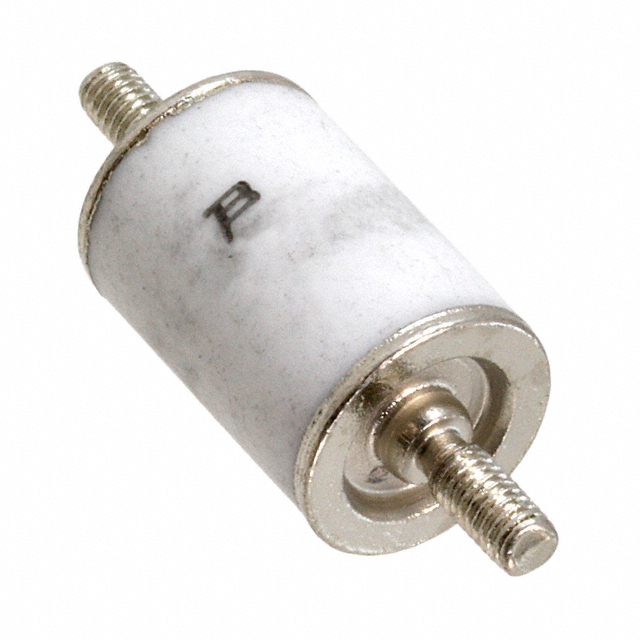

2097-120-DLF

Active

Bourns Inc.

GDT 1200V 20KA 2 POLE CHASSIS

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 1200V 20KA 2 POLE CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	2097-120-DLF

Fail Short	False
Impulse Discharge Current (8/20µs)	20 kA
Impulse Discharge Current (8/20µs)	20000 A
Mounting Type	Chassis, Stud Mount
Number of Poles	2
Package / Case	Axial Cylinder
Tolerance	20 %
Voltage - DC Spark Over (Nom)	1200 V

Part	Number of Poles	Package / Case	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Voltage - DC Spark Over (Nom)	Mounting Type	Tolerance
Bourns Inc. 2097-100-DLF	2	Axial Cylinder	20 kA	20000 A	1000 V	Chassis Stud Mount	20 %
Bourns Inc. 2097-120-DLF	2	Axial Cylinder	20 kA	20000 A	1200 V	Chassis Stud Mount	20 %
Bourns Inc. 2097-140-DLF	2	Axial Cylinder	20 kA	20000 A	1400 V	Chassis Stud Mount	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	105	$ 12.08

General part information

Gas Discharge Tube 1200 V 20000A (20kA) ±20% 2 Pole Chassis, Stud Mount
