64975-502

Active

Laird Thermal Systems, Inc.

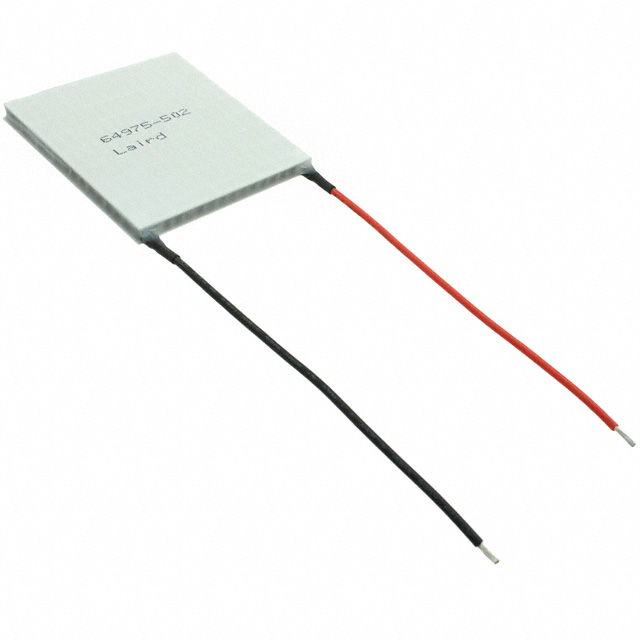

PELTIER CP2,127,10,L,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP2,127,10,L,RT,W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	64975-502

Current - Max [Max]	9.3 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	5.59 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	79.8 W
Resistance	1.44 Ohms
Size / Dimension	Square
Size / Dimension [x]	62 mm
Size / Dimension [y]	62 mm
Voltage - Max [Max]	14.5 V

Part	Features	Qmax @ Th	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Operating Temperature	Number of Stages	Current - Max [Max]	Height [z]	Voltage - Max [Max]	Delta Tmax @ Th
Laird Thermal Systems, Inc. 64975-502	Lead Wires Sealed - Silicone RTV	79.8 W	1.44 Ohms	62 mm	62 mm	Square	80 °C	1	9.3 A	5.59 mm	14.5 V	67 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 79.8W @ 25°C 9.3 A 80°C
