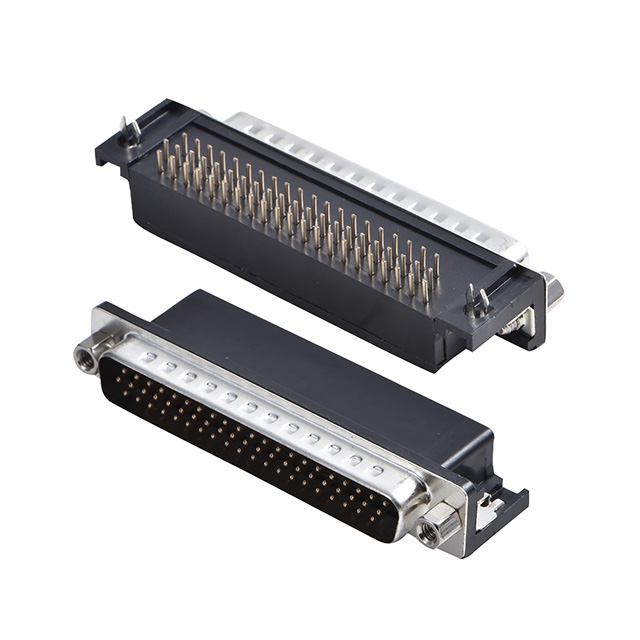

A-HDS 62 A-KG/T

Active

Assmann WSW Components

CONN D-SUB HD PLUG 62P R/A SLDR

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB HD PLUG 62P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	A-HDS 62 A-KG/T

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	250 VDC

Part	Shell Size, Connector Layout	Connector Type	Flange Feature	Number of Rows	Contact Material	Voltage Rating	Contact Type	Material Flammability Rating	Current Rating (Amps)	Dielectric Material	Mounting Type	Connector Style	Color	Number of Positions	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish	Backset Spacing	Backset Spacing	Termination
Assmann WSW Components A-HDS 62 LL/Z	4	Male Pins Plug	Housing/Shell (Unthreaded)	3	Copper Alloy	250 VDC	Signal	UL94 V-0	3 A	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	D-Sub High Density	Black	62	Flash	85 °C	-20 C	Grounding Indents	Gold
Assmann WSW Components A-HDS 62 A-KG/T	4	Male Pins Plug	Female Screwlock (4-40) Mating Side	3	Copper Alloy	250 VDC	Signal	UL94 V-0	3 A	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	D-Sub High Density	Black	62	Flash	105 ░C	-55 °C	Board Lock Grounding Indents	Gold	8.89 mm	0.35 in	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 4.17

General part information

62 Position D-Sub, High Density Plug, Male Pins Connector
