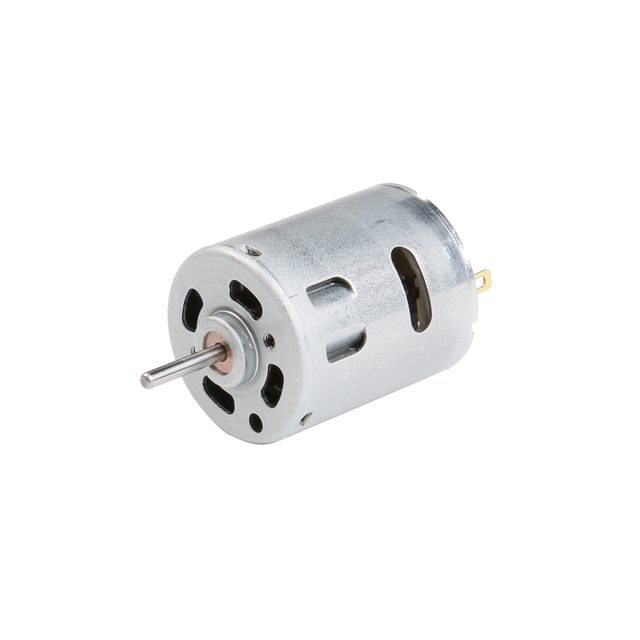

HC385G-304

Active

Johnson Motor

LOW VOLTAGE DC MOTORS

Search across all available documentation for this part.

Active

Johnson Motor

LOW VOLTAGE DC MOTORS

Technical Specifications

Parameters and characteristics for this part

Specification	HC385G-304

Diameter - Shaft [diameter]	0.091 in
Diameter - Shaft [diameter]	2.3 mm
Function	Standard
Motor Type	Brushed
Mounting Hole Spacing	0.63 in
Mounting Hole Spacing	16 mm
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Power - Rated	14.7 W
RPM	8100 RPM
Size / Dimension [diameter]	1.1 "
Size / Dimension [diameter]	27.94 mm
Termination Style	Solder Tab
Torque - Max Momentary (oz-in / mNm)	4.52 mNm
Torque - Max Momentary (oz-in / mNm)	0.64 oz-in
Torque - Rated (oz-in / mNm)	0.48 oz-in
Torque - Rated (oz-in / mNm)	3.42 mNm
Type	DC Motor
Voltage - Rated	24 VDC
Weight	51.03 g
Weight	0.113 lb

Part	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Motor Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Mounting Hole Spacing	Mounting Hole Spacing	Function	Type	RPM	Power - Rated	Weight	Weight
Johnson Motor HC385G-304	Solder Tab	55 °C	-10 °C	1.1 "	27.94 mm	0.48 oz-in	3.42 mNm	Brushed	0.091 in	2.3 mm	24 VDC	4.52 mNm	0.64 oz-in	0.63 in	16 mm	Standard	DC Motor	8100 RPM	14.7 W	51.03 g	0.113 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 8100 RPM 14.7W 24VDC
